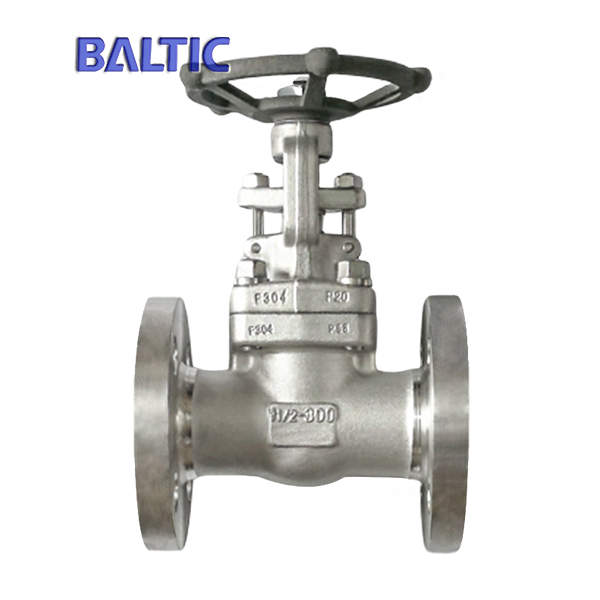

ASTM A182 F304 Gate Valve, API 602, 1-1/2 Inch, Class 300 LB

Key Specifications / Features

Model No.: Hits: 131

ASTM A182 F304 Gate Valve Maker in China: Small Size ASTM A182 F304 Gate Valve with Integral Flange, API 602, 1-1/2 Inch, Class 300 LB, Test API 598.

Request a quote Share

Tags:

Next: ASTM A350 LF2 Gate Valve with Integral Flange, 600 LB, 3/4 Inch

Previous: Special Material Gate Valve, A182 F304H, API 602, 1/2 Inch, 300 LB

Detail Information

Valve description:
Name: Small size gate valve, with integral flange.
Design: API 602.
Body: ASTM A182 F304.
Nominal size: 1-1/2 Inch.
Nominal class: Class 300 LB.
End connection: Flange ends.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics

Product	Small size gate valve.
Nominal diameter	1/4 Inch-4 Inch.
Design temp.	-196℃-573℃.
Design pressure	Class 150-4500 LB.
Material	Carbon steel, Stainless steel, Alloy steel, Bronze.
Design standard	API 602, BS 5352.
Face to face	Manufacture standard, ASME B16.10.
Connection end	NPT, SW, BW, Flange.
Test standard	API 598, ISO 5208.
Operation	Hand wheel, electric.
Application	Power station, petroleum, chemical engineering.
Function 1	Bolted bonnet, welded bonnet, pressure seal bonnet.
Function 2	Solid wedge.
Function 3	Full bore, reduce bore.
Function 4	Integral flanged ends, welded on flanged ends.
