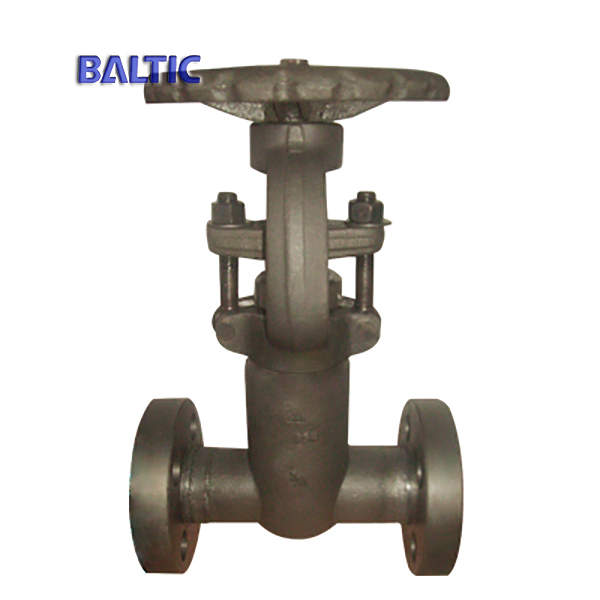

ASTM A182 F22 Forged Steel Gate Valve, 1/2 Inch, 2500 LB, RTJ End

Key Specifications / Features

Model No.: 2-1 Hits: 450

China A182 F22 Forged Steel Gate Valve Factory Offers ASTM A182 F22 Forged Steel Gate Valve: 1/2 Inch, Class 2500 LB, ASME B16.34 Design, RTJ End.

Request a quote Share

Tags:

Next: ASTM A182 F11 Gate Valve, API 602, ASME B16.34, 1IN, CL2500, BW

Previous: Integral Flanged Gate Valve, ASTM A182 F304, API 602, DN15, PN20

Detail Information

Valve descriptions
Product: Small size gate valve with welded on flanged ends.
Design: API 602, ASME B16.34.
Body: ASTM A182 F22.
Nominal size: 1/2 Inch.
Nominal class: 2500 LB.
Connection ends: RTJ flanged ends.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics

Product	Small size gate valve
Nominal diameter	1/4"-2"
Design temp.	-196℃-593℃
Design pressure	Class 150-2500
Material	Forged carbon steel, SS, ally steel, duplex SS, nickel based alloy
Design standard	API 602, BS5352
Face to face	Manufacture standard, ASME B16.10
Connection end	NPT, SW, BW, RF, RTJ
Test standard	API 598, ISO 5208
Operation	Hand wheel, electric
Application	Power station, petroleum, tap water engineering, chemical engineering,
Function 1	Bolted bonnet, welded bonnet, pressure seal bonnet
Function 2	solid wedge
Function 3	Full bore, reduce bore
Function 4	Integral flanged ends, welded on flanged ends
