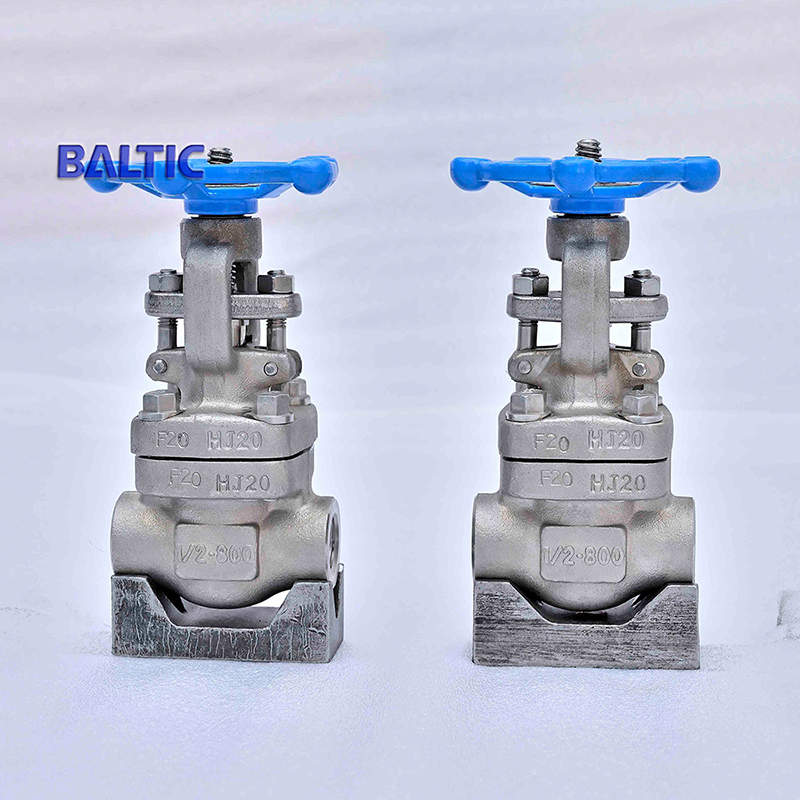

• ASTM A182 F20 Gate Valve, 1/2 Inch, 800 LB, FNPT Ends

ASTM A182 F20 Gate Valve, 1/2 Inch, 800 LB, FNPT Ends

ASTM A182 F20 Gate Valve, 1/2 Inch, 800 LB, FNPT Ends

Key Specifications / Features

Model No.: Hits: 66

ASTM A182 F20 Gate Valve Manufacturer: API 602 Gate Valves, ASTM A182 F20, 1/2 Inch, Class 800 LB, Reduced Bore, F-NPT Ends, API 598 Test.
Request a quote Share

Detail Information

Valve Description
Name: Small Size Gate Valve, Reduced Bore
Design: API 602
Body: ASTM A182 F20
Nominal Size: 1/2 Inch
Nominal Class: Class 800 LB
End Connection: F-NPT Ends
Face to Face: Manufacture Standard
Test and Inspection: API 598

Technical Parameters and Characteristics
Product: Small Size Gate Valve
Nominal Diameter: 1/4 Inch - 4 Inch
Design Temp.: -196℃ - 573℃
Design Pressure: Class 150 LB - Class 4500 LB
Material: Carbon Steel, Stainless Steel, Alloy Steel, Bronze
Design Standard: API 602, BS 5352
Face to Face: Manufacture Standard, ASME B16.10
Connection End: NPT, SW, BW, Flanged
Test Standard: API 598, ISO 5208
Operation: Handwheel, Electric
Application: Power Station, Petroleum, Chemical Engineering
Function 1: Bolted Bonnet, Welded Bonnet, Pressure Seal Bonnet
Function 2: Solid Wedge
Function 3: Full Bore, Reduced Bore
Function 4: Integral Flanged Ends, Welded on Flanged Ends
