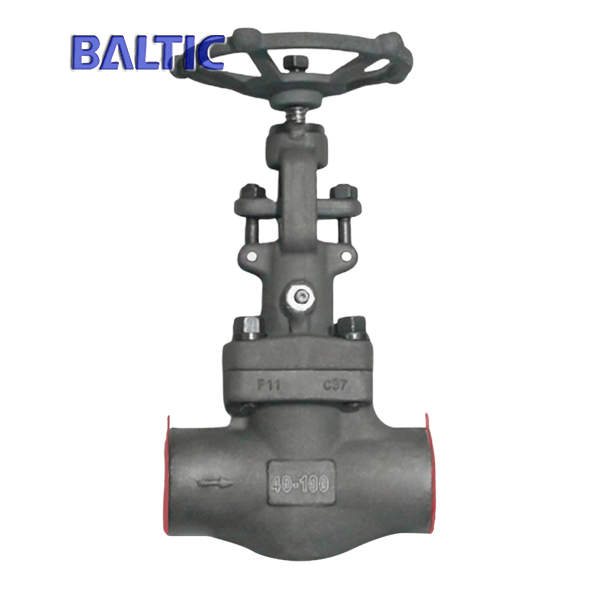

ASTM A182 F11 Forged Globe Valve, DN40, PN100, BW, DIN, API 602

Key Specifications / Features

Model No.: Hits: 271

ASTM A182 F11 Forged Globe Valve Supplier in China: ASTM A182 F11 Small Size Forged Alloy Steel Globe Valve, DN40, PN100, BW, DIN Standard, API 602.

Request a quote Share

Tags:

Next: Bare Stem Forged Globe Valve, ASTM A105N, 1 Inch, Class 800, SW

Previous: Globe Valve with Regulating Disc, A105N, 1.5IN, CL600, API 602, RF

Detail Information

Name: Small size globe valve, DIN standard.
Design: API 602.
Body: ASTM A182 F11.
Nominal size: DN40.
Nominal class: PN100.
End connection: BW.
Face to face: as per manufacture standard.
Test and inspection: EN12266-1.

Technical parameters and characteristics

Product	Small size globe valve
Nominal diameter	1/4 Inch - 4 Inch
Design temp.	-196℃ - 573℃
Design pressure	Class 150 - 4500
Material	Forged carbon steel, Stainless steel, Alloy steel, Bronze
Design standard	API 602, BS 5352
Face to face	Manufacture standard, ASME B16.10
Connection end	NPT, SW, BW, Flange
Test standard	API 598, ISO 5208
Operation	Hand wheel, electric
Application	Power station, petroleum, chemical engineering
Function 1	bolted bonnet, welded bonnet, pressure seal bonnet
Function 2	plug disc, needle disc
Function 3	full bore, reduce bore
Function 4	Integral flanged ends, welded on flanged ends

ASTM A182 F11 Forged Globe Valve, DN40, PN100, BW, DIN, API 602

Key Specifications / Features

Detail Information

Similar Products

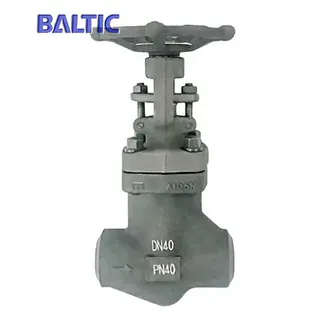

Forged Carbon Steel Globe Valve, ASTM A105N, DN40 PN40, BW, API 602
