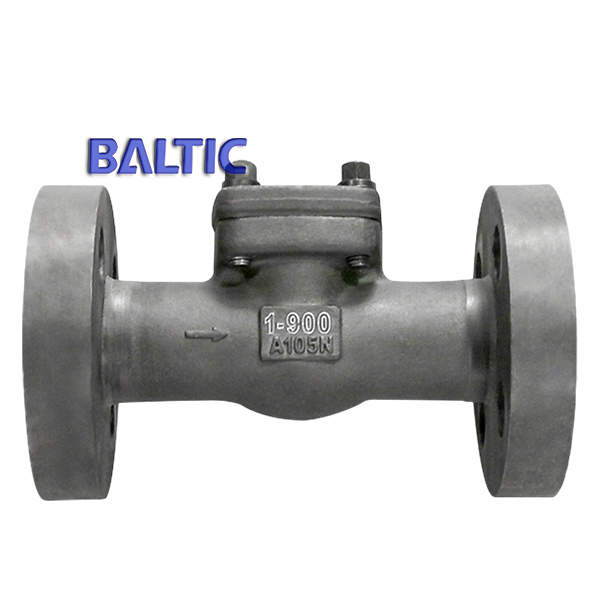

• ASTM A105N Swing Check Valve, 1 Inch, Class 900 LB, RF, API 602
ASTM A105N Swing Check Valve, 1 Inch, Class 900 LB, RF, API 602

ASTM A105N Swing Check Valve, 1 Inch, Class 900 LB, RF, API 602

ASTM A105N Swing Check Valve, 1 Inch, Class 900 LB, RF, API 602

Key Specifications / Features

Model No.: Hits: 129

ASTM A105N Swing Check Valve Manufacturer in China: Forged Steel ASTM A105N Swing Check Valve, 1 Inch, Class 900 LB, Integral Flanged Ends, API 602.
Request a quote Share

Next: API 602 Lift Check Valve, ASTM A105N, 2 Inch, Class 300 LB, RF

Previous: ASTM A182 F304 Small Size Lift Check Valve, 1 Inch, 150 LB, RF

Detail Information

Name: Small size check valve, Swing type.
Design: API 602.
Body: ASTM A105N.
Nominal size: 1 Inch.
Nominal class: 900 LB.
End connection: integral flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product Small size check valve
Nominal diameter 1/4 Inch - 4 Inch
Design temp.  -196℃  - 573℃
Design pressure Class 150 - 2500
Material Carbon steel, Stainless steel, Alloy steel, Bronze
Design standard API 602, BS 5352
Face to face Manufacture standard, ASME B16.10
Connection end NPT, SW, BW, Flange
Test standard API 598, ISO 5208
Operation x
Application Power station, petroleum, chemical engineering,
Function 1 bolted bonnet, welded bonnet, pressure seal bonnet
Function 2 Swing type,  lift type
Function 3 full bore,  reduce bore
Function 4 Integral flanged ends, welded on flanged ends
