ASTM A105N Integral Flanged Globe Valve, 3/4 Inch, 600 LB, RF

Key Specifications / Features

Model No.: Hits: 217

ASTM A105N Integral Flanged Globe Valve Fabricator in China: ASTM A105N Integral Flanged Globe Valve, Forged Steel, 3/4 Inch, 600 LB, RF, API 602.

Request a quote Share

Tags:

Next: ASTM A350 LF2 Forged Globe Valve, 2 Inch, Class 2500 LB, RF, PSB

Previous: Globe Valve with Regulating Disc, A105N, 1.5IN, CL600, API 602, RF

Detail Information

Name: Small size globe valve, with integral flange.
Design: API 602.
Body: ASTM A105N.
Nominal size: 3/4 Inch.
Nominal class: 600 LB.
End connection: RF.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics

Product	Small size globe valve
Nominal diameter	1/4 Inch - 4 Inch
Design temp.	-196℃ - 573℃
Design pressure	Class 150 - 4500
Material	Forged carbon steel, Stainless steel, Alloy steel, Bronze
Design standard	API 602, BS 5352
Face to face	Manufacture standard, ASME B16.10
Connection end	NPT, SW, BW, Flange
Test standard	API 598, ISO 5208
Operation	Hand wheel, electric
Application	Power station, petroleum, chemical engineering
Function 1	bolted bonnet, welded bonnet, pressure seal bonnet
Function 2	plug disc, needle disc
Function 3	full bore, reduce bore
Function 4	Integral flanged ends, welded on flanged ends

ASTM A105N Integral Flanged Globe Valve, 3/4 Inch, 600 LB, RF

Key Specifications / Features

Detail Information

Similar Products

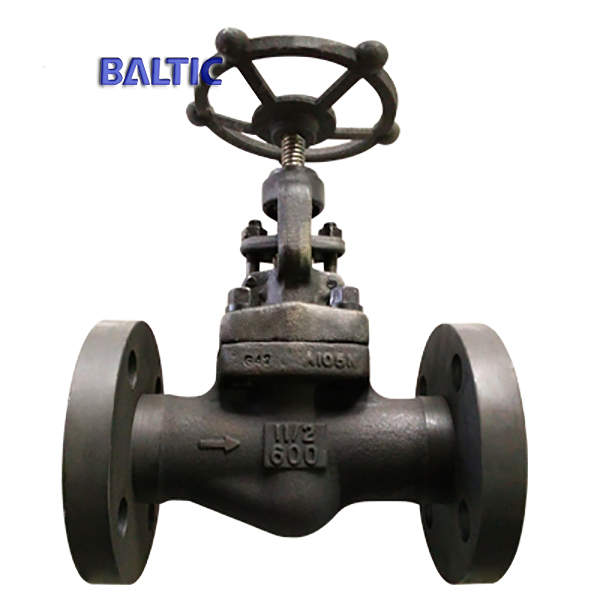

Globe Valve with Regulating Disc, A105N, 1.5IN, CL600, API 602, RF

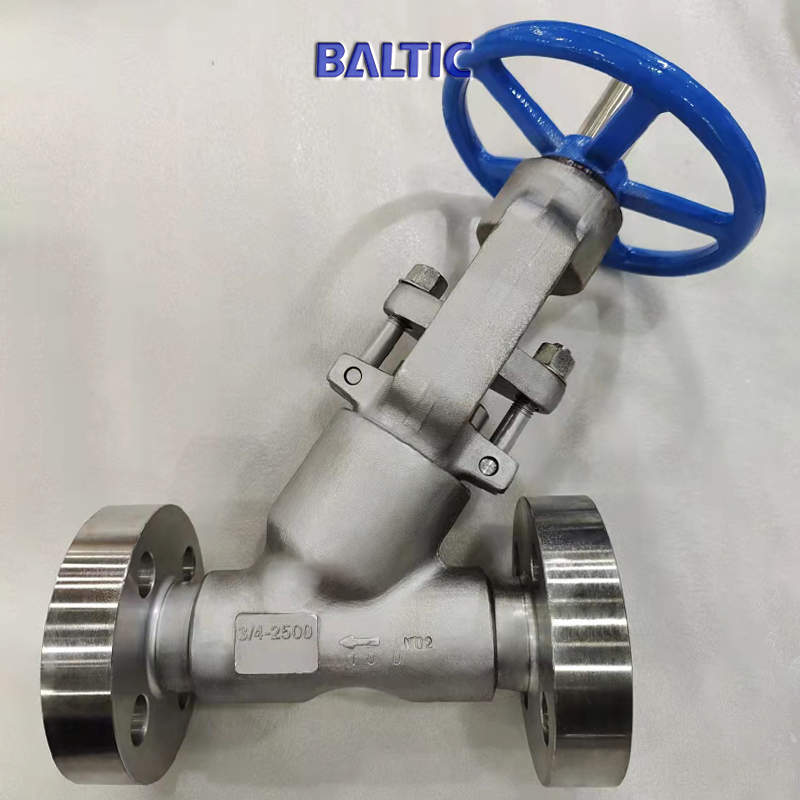

ASTM A182 F321 Y Globe Valve, API 602, 3/4 IN, 2500 LB

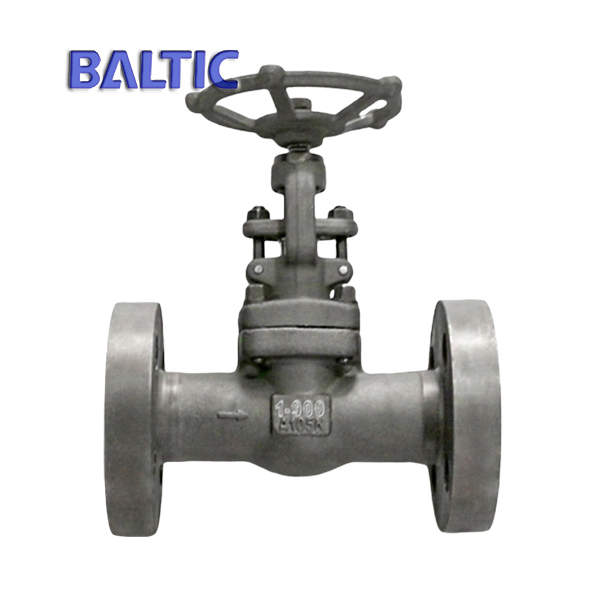

API 602 Forged Steel Globe Valve, ASTM A105N, 1 Inch, 900 LB, RF

Integral Flanged End Globe Valve, A350 LF2, 2 Inch, 300 LB, RF

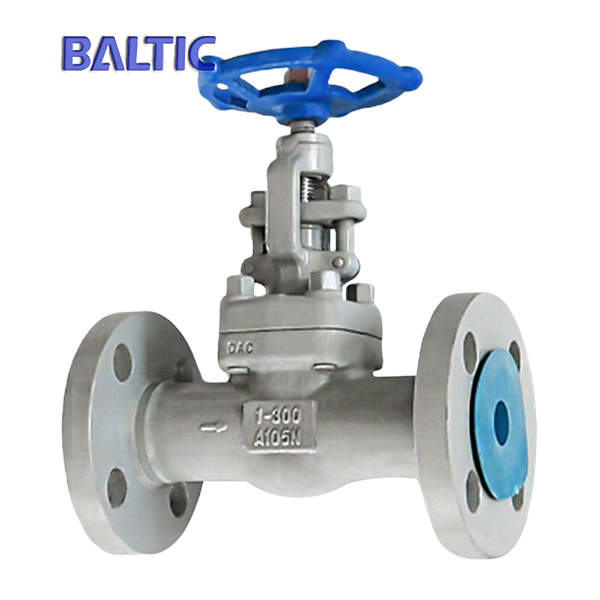

ASTM A105N Forged Globe Valve, 1 Inch, 300 LB, RF, Integral Flanged

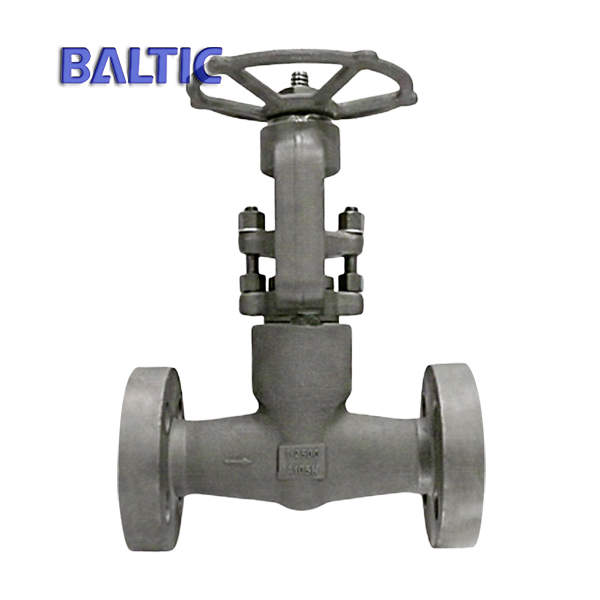

Pressure Seal Bonnet Globe Valve, ASTM A105N, 1 Inch, 2500 LB, RF
