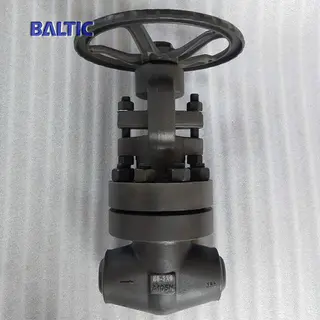

ASTM A105N Globe Valve, API 602, 1-1/2 Inch, 800 LB, BW

ASTM A105N Globe Valve Manufacturer: 1-1/2 Inch Globe Valves with Bare Stem and Top ISO Flange, ASTM A105N, API 602, Class 800 LB, BW Ends.

Tags:

• ASTM A105N Globe Valve
• API 602 Globe Valve
• 1-1/2 Inch Globe Valve
• Class 800 LB Globe Valve
• BW Globe Valve
• Small Size Globe Valve
• Pressure Seal Bonnet Globe Valve

Valve Description
Product: Small size globe valve, with bare stem + top ISO flange
Design: API 602
Body: ASTM A105N
Nominal size: 1-1/2 Inch
Nominal class: Class 800 LB
End connection: BW
Face to face: as per manufacturing standard
Test and inspection: API 598

Technical parameters and characteristics
Product: Small size globe valve
Nominal diameter: 1/4 Inch - 4 Inch
Design temp.: -196℃ - 573℃
Design pressure: Class 150 - 4500 LB
Material: Forged carbon steel, Stainless steel, Alloy steel, Bronze
Design standard: API 602, BS 5352
Face to face: Manufacture standard, ASME B16.10
Connection end: NPT, SW, BW, Flange
Test standard: API 598, ISO 5208
Operation: Handwheel, electric
Application: Power station, petroleum, chemical engineering
Function 1: Bolted bonnet, welted bonnet, pressure seal bonnet
Function 2: Plug disc, needle disc
Function 3: Full bore, reduced bore
Function 4: Integral flanged ends, welded on flanged ends
