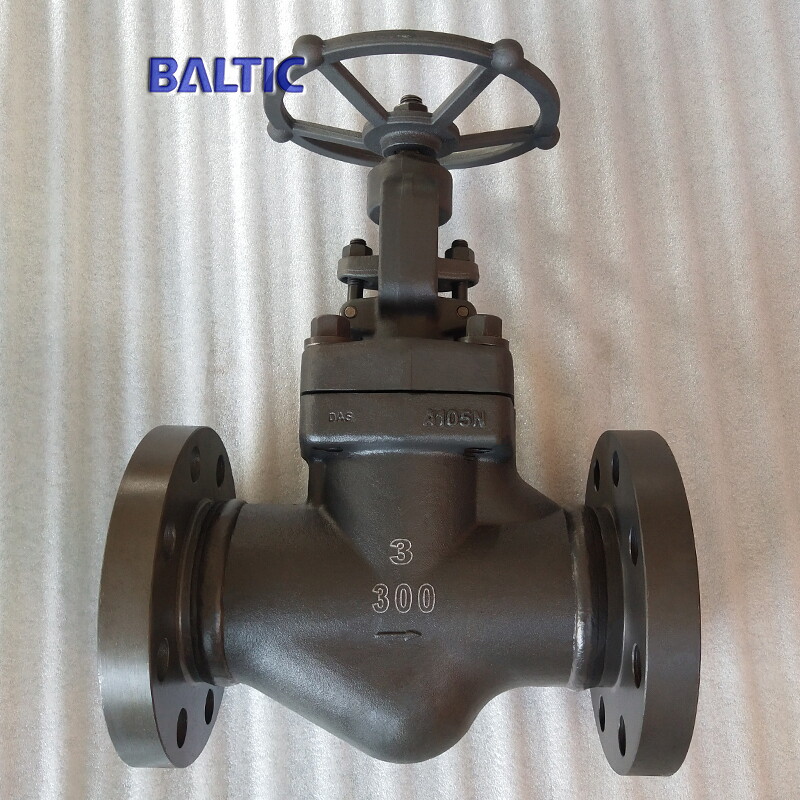

• ASTM A105N Globe Valve, 3 Inch, 300 LB, API 602, RF

ASTM A105N Globe Valve, 3 Inch, 300 LB, API 602, RF

ASTM A105N Globe Valve, 3 Inch, 300 LB, API 602, RF

Key Specifications / Features

Model No.: Hits: 10

Looking for a reliable ASTM A105N globe valve provider? Our offerings include 3-inch valves suitable for DN80 sizing, rated at CL 300 LB and PN50. Built to API 602 standards, our valves feature RF integral flanges and are forged from high-quality carbon steel, stainless steel, alloy steel, and bronze materials.
Request a quote Share

Detail Information

Valve description:
Name: Small size globe valve, with integral flange.
Design: API 602.
Body: ASTM A105N.
Nominal size: 3 Inch.
Nominal class: 300 LB.
End connection: RF.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product Small-size globe valve
Nominal diameter 1/4 - 4 Inch
Design temp. -196℃ - 573℃
Design pressure Class 150 - 4500  LB
Material Forged carbon steel, Stainless steel, Alloy steel, Bronze
Design standard API 602, BS 5352
Face to face Manufacture standard, ASME B16.10
Connection end NPT, SW, BW, Flange
Test standard API 598, ISO 5208
Operation Hand wheel, electric
Application Power station, petroleum, chemical engineering
Function 1 bolted bonnet, welded bonnet, pressure seal bonnet
Function 2 plug disc, needle disc
Function 3 full bore, reduced bore
Function 4 Integral flanged ends、welded on flanged ends
