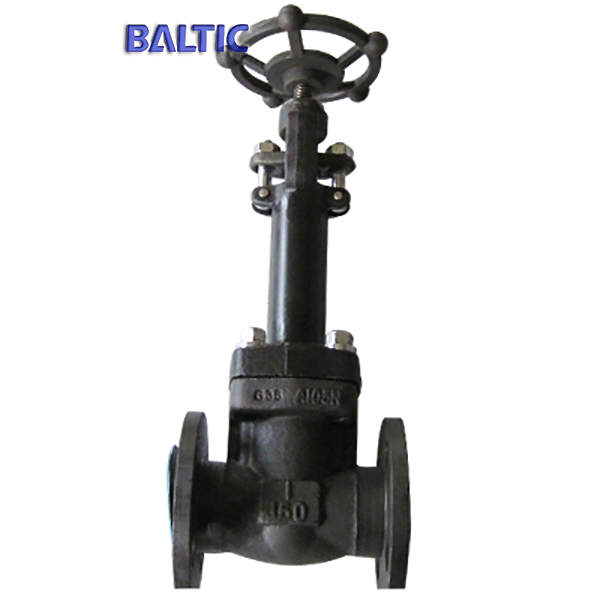

• ASTM A105N Gate Valve, Extension Stem, API 602, 1IN, 150LB, RF
ASTM A105N Gate Valve, Extension Stem, API 602, 1IN, 150LB, RF

ASTM A105N Gate Valve, Extension Stem, API 602, 1IN, 150LB, RF

ASTM A105N Gate Valve, Extension Stem, API 602, 1IN, 150LB, RF

Key Specifications / Features

Model No.: 2-3 Hits: 181

China A105N Gate Valve Factory Offers Small Size Gate Valve with Extension Stem, ASTM A105N, 1IN, Class 150LB, RF Ends, FF ASME B16.10.
Request a quote Share

Next: Extension Stem Forged Gate Valve, ASTM A350 LF2, 1 Inch, 800 LB, BW

Detail Information

Valve descriptions
Product: Small size gate valve with extension stem.
Design: API 602.
Body: ASTM A105N.
Nominal size: 1 Inch.
Nominal class: 150 LB.
Connection ends: RF flanged ends.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product Small size gate valve
Nominal diameter 1/4-2IN
Design temp.  -196℃-593℃
Design pressure Class 150-2500
Material Forged carbon steel, SS, ally steel, duplex SS, nickel based alloy
Design standard API 602, BS5352
Face to face Manufacture standard, ASME B16.10
Connection end NPT, SW, BW, RF, RTJ
Test standard API 598, ISO 5208
Operation Hand wheel, electric
Application Power station, petroleum, tap water engineering, chemical engineering,
Function 1 Bolted bonnet, welded bonnet, pressure seal bonnet
Function 2 solid wedge
Function 3 Full bore, reduce bore
Function 4 Integral flanged ends, welded on flanged ends
