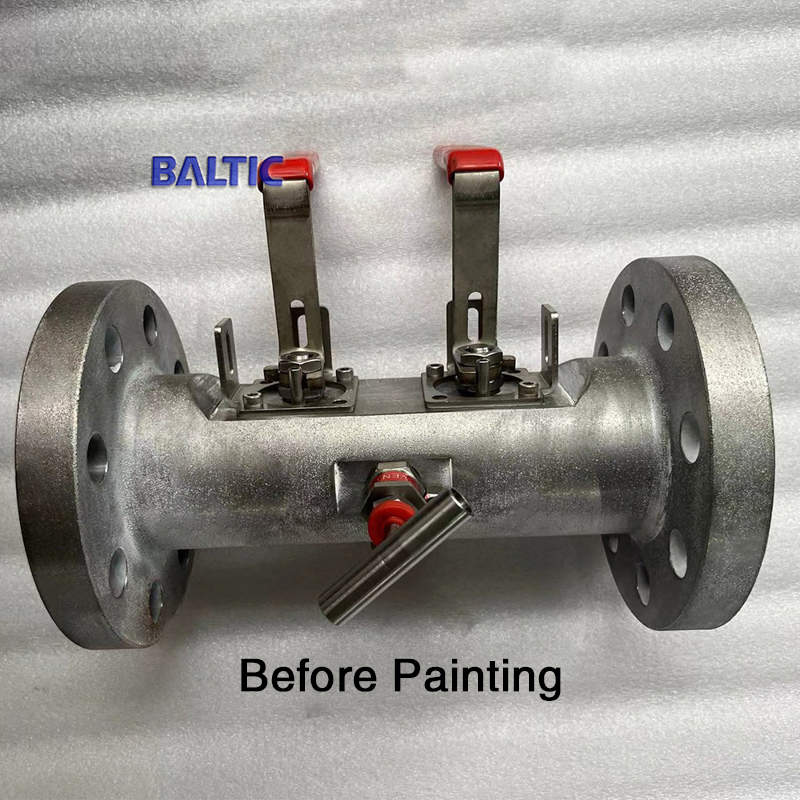

ASTM A105N DBB Ball Valve, One Piece, 1 Inch, 600 LB, RF

Looking for a high-quality DBB ball valve? Our ASTM A105N valve is perfect for your needs. With a diameter of 1 inch and DN25 size, it's designed for Class 600 LB and PN100 pressure ratings. Made to EEMUA 182 and ASME B16.34 standards, this one-piece valve features an RF flange and hand lever for easy operation. Trust our top-notch manufacturing to deliver the reliable performance you need.

Tags:

• ASTM A105N Ball Valve
• 1 Inch Ball Valve
• Class 600 LB Ball Valve
• DN25 Ball Valve
• PN100 Ball Valve
• ASME B16.34 Ball Valve
• RF Ball Valve

DBB ball valve, NPS 1, 600 LB, A105N, RF.

Valve description:
DBB ball valve (ball, needle, ball), with hand lever
Design: EEMUA 182, ASME B16.34.
Body Pattern: one piece.
Body: ASTM A105N.
Nominal size: 1 Inch.
Nominal class: 600 LB.
End Connection: RF Flanged.
Face-to-face: as per manufacturer's standard.
Test and inspection: EEMUA 182, API 598.
Operation: lever.

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2 - 24 Inch (DN15 - DN600).
End connection: Flanged X Flanged, Flanged X NPT.
Pressure range: Class 150 - 3000 LB, 15000 PSI.
Working temperature: -46℃ - +350℃.
