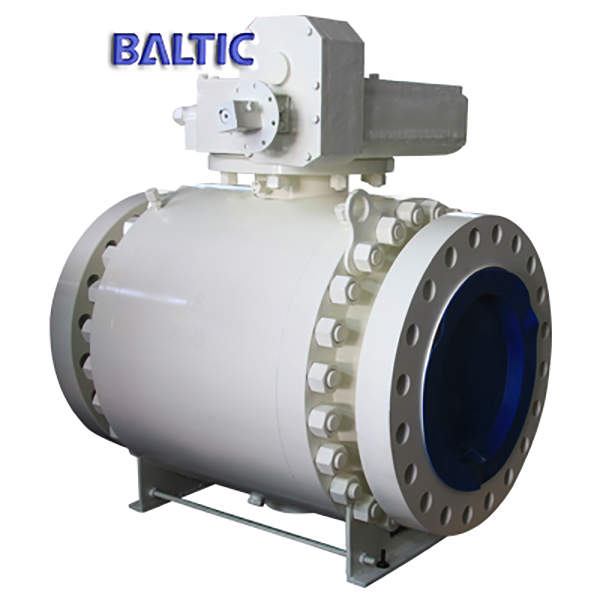

ASTM A105 Metal Seat Ball Valve, 24 Inch, Class 600, API 6D, RF

Name: ASTM A105 Metal Seat Ball Valve, 24 Inch, Class 600, API 6D, RF
SKU: msbv-01
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No.: MSBV-01 Hits: 379

China A105 Metal Seat Ball Valve Factory Baltic Offers ASTM A105 Metal Seat Ball Valve, 24 Inch, Class 600, API 6D, RF Flanged Ends, FF ASME B16.10.

Request a quote Share

Tags:

Next: ASTM A182 LF2 Metal Seat Ball Valve, API 6D, 28 Inch, 600 LB, RF

Detail Information

Valve description:
Name: Metal seat ball valve.
Design: API 6D.
Body: ASTM A105.
Nominal size: 24 Inch.
Nominal class: Class 600 LB.
Connection ends: RF flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics

Product	Metal Seated Ball Valve
Nominal diameter	1/2" - 48"
Design temp.	-196℃ - 593℃
Design pressure	class 150 - 2500
Material	A105, LF2, F316, WCB, LCB, CF8M
Design standard	API 6D, ASME B16.34
Face to face	ASME B16.10
End	ASME B16.5 / ASME B16.25
Test standard	API 598, ISO 5208
Operation	level, worm gear, electric, pneumatic
Application	oil, gas, coal, chemical industries
Feature 1	ball + seat sealing surface coating hardness material
Feature 2	spring support seat ring, stable sealing design
Feature 3	supporting plate (trunnion) construction, light operating torque value, long life
Feature 4	fire safe design
Feature 5	spring Protection
Feature 6	full bore, reduce bore

ASTM A105 Metal Seat Ball Valve, 24 Inch, Class 600, API 6D, RF

Key Specifications / Features

Detail Information

Similar Products

Pneumatic Actuated Ball Valve, ASTM A105, 24 Inch, 150 LB, RF

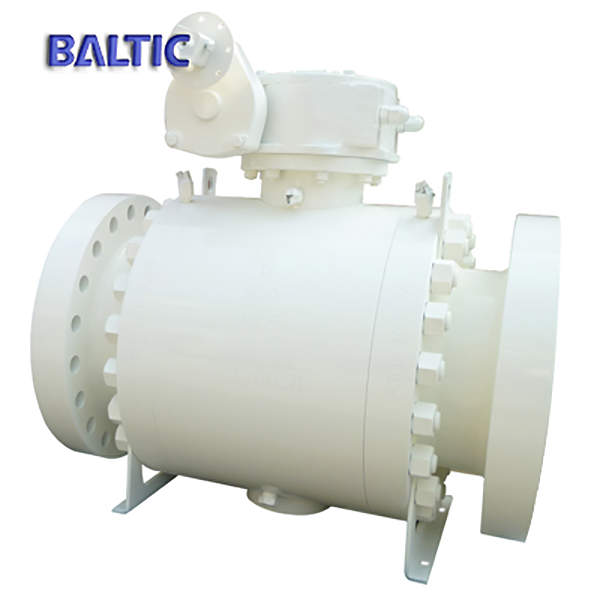

3-PC Side Entry TM Ball Valve, A105, API 6D, 20 Inch, 600 LB, RF

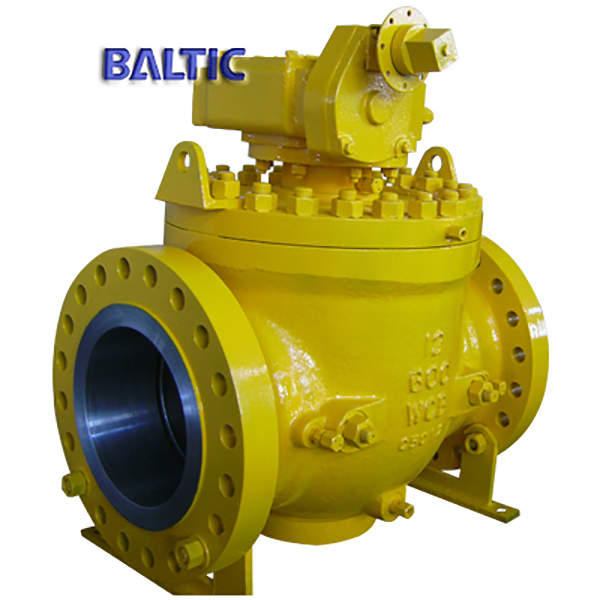

ASTM A216 WCB Top Entry Ball Valve, 12 Inch, Class 600, RF Ends

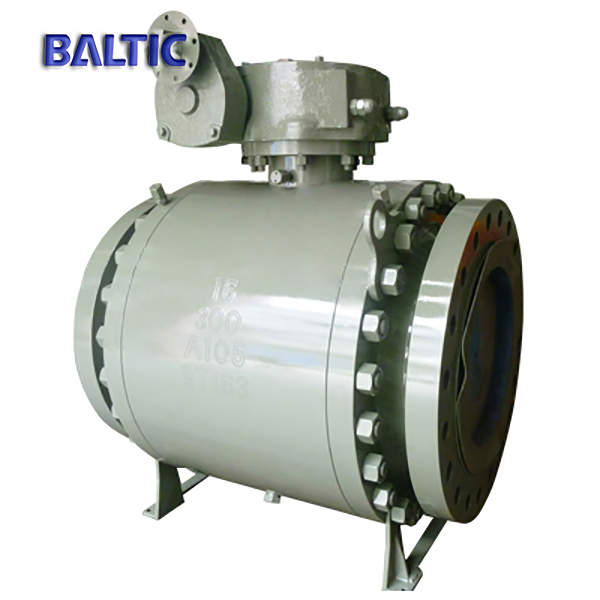

API 6D Metal Seated Ball Valve, DN400, PN50, A105, FF ASME B16.10

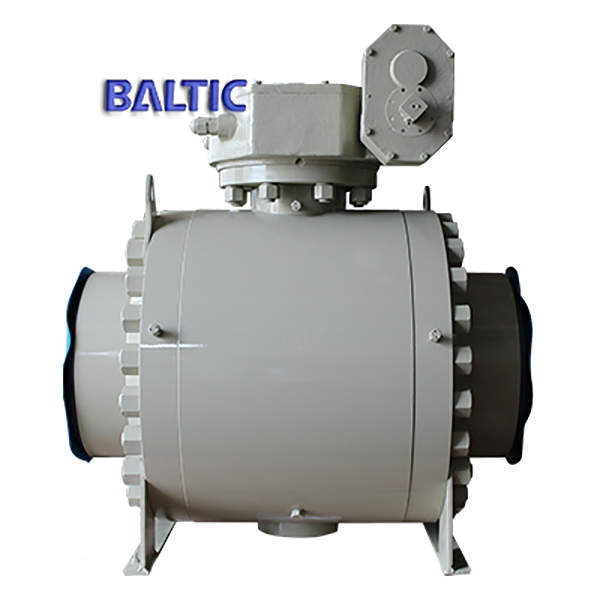

ASTM A182 LF2 Metal Seat Ball Valve, API 6D, 28 Inch, 600 LB, RF

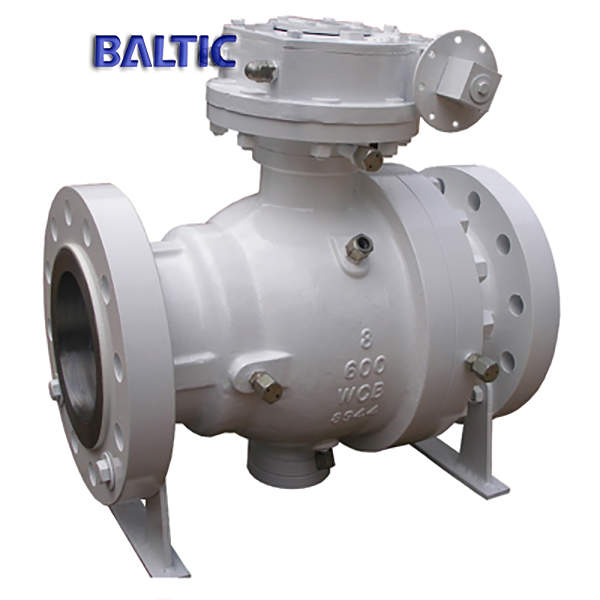

2-PC Trunnion Ball Valve, A216 WCB, API 6D, 8 Inch, 600 LB, RF
