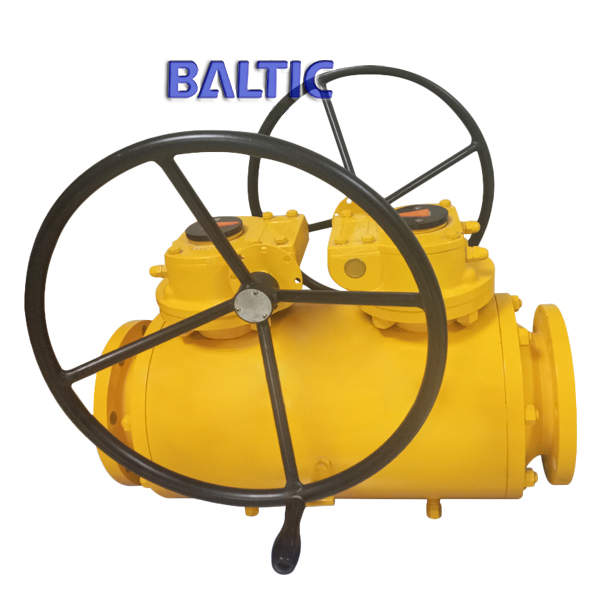

• ASME B16.34 DBB Ball Valve, ASTM A182 LF2, 8 x 6 Inch, 150 LB, RF

ASME B16.34 DBB Ball Valve, ASTM A182 LF2, 8 x 6 Inch, 150 LB, RF

ASME B16.34 DBB Ball Valve, ASTM A182 LF2, 8 x 6 Inch, 150 LB, RF

Key Specifications / Features

Model No.: DBB-D6 Hits: 175

ASME B16.34 DBB Ball Valve Factory in China: ASME B16.34 DBB Ball Valve, 3-Pcs, ASTM A182 LF2, 8 x 6 Inch, Class 150 LB, RF Ends, Gearbox Operated.
Request a quote Share

Detail Information

Valve description:
Big size DBB ball valve (ball/needle/ball), Trunnion Mounted, Gearbox operated, Flange ends, Big size.
Design: EEMUA 182, ASME B16.34.
Body Pattern: 3-PC.
Body: ASTM A182 LF2.
Nominal size: 8 x 6 Inch.
Nominal class: 150 LB.
End Connection: RF Flanged.
Face to face: as per manufacturer's standard.
Test and inspection: EEMUA 182, API 598.
Operation: gearbox.

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2 - 24 Inch (DN15 - DN600).
End connection: Flanged x Flanged, Flanged X NPT.
Pressure range: 150 - 3000 LB/ 15000 PSI.
Working temperature: -46℃ - +350℃.
