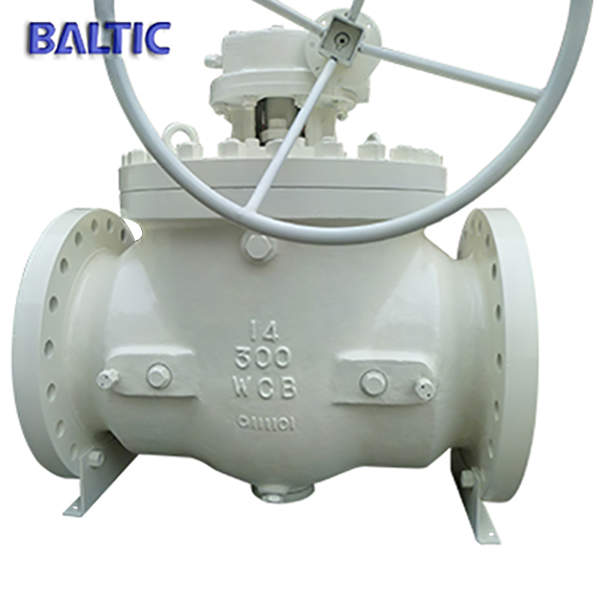

API 6D Top Entry Ball Valve, 14 Inch, Class 300, ASTM A216 WCB

Key Specifications / Features

Model No.: 1-4 Hits: 274

China API 6D Top Entry Ball Valve Factory Baltic Provides API 6D Top Entry Ball Valve, 14 Inch, Class 300, A216 WCB, RF Flanged Ends, API 598 Test.

Request a quote Share

Tags:

Next: API 6D Top Entry Ball Valve, ASTM A216 WCB, 20 Inch, CL600, RF

Previous: ASTM A216 WCB Top Entry Ball Valve, 12 Inch, Class 600, RF Ends

Detail Information

Valve description:
Name: Top entry ball valve.
Design: API 6D.
Body: ASTM A216 WCB.
Nominal size: 14 Inch.
Nominal class: Class 300.
Connection ends: RF flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics

Product	Top Entry Ball Valve
Nominal diameter	2" - 56"
Design temp.	-46℃ - 121℃
Design pressure	class 150 - 2500
Material	WCB, LCB, CF8M, A105, LF2, F316
Design standard	API 6D, ISO 17292
Face to face	ASME B16.10
Connecting end	ASME B16.5, ASME B16.25
Test standard	API 598, API 6D
Operation	manual, worm, pneumatic, electric
Application fields	water, petroleum and natural gas
Feature 1	parts such as cover / ball / stem, can be dismounted and installed online to realize the online repair
Feature 2	locking device
Feature 3	anti-blow out stem
Feature 4	fire safe and anti-static design
Feature 5	stem & seats to be equipped injection fittings
Feature 6	DBB / double block and bleed
