API 6D Swing Check Valve, BS EN 10213 GP240GH, DN250, PN16

We are a trusted manufacturer of Swing Check Valves in China, offering high-quality valves designed to meet API 6D standards. Our valves feature a robust BS EN 10213 GP240GH body and are available in DN250 size with a PN16 pressure rating. The valves are equipped with RF flanged ends for secure connections and have face-to-face dimensions in accordance with EN558-1. Engineered for reliable performance, our Swing Check Valves are ideal for a wide range of industrial applications, including petrochemical, offshore, and power generation sectors.

Tags:

• API 6D Check Valve
• BS EN 10213 GP240GH Check Valve
• DN250 Check Valve
• PN16 Check Valve

Swing Check Valves, GP240GH, DN250, PN16, RF.

Valve Description:

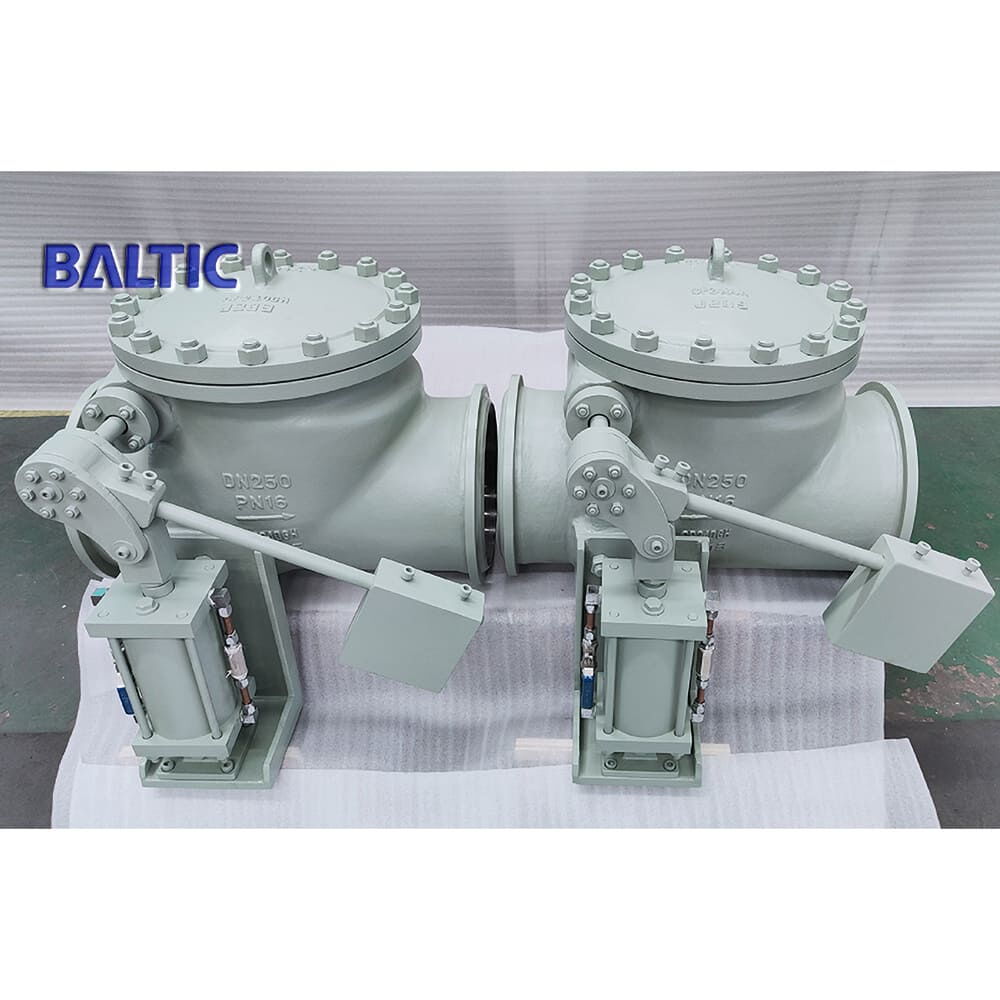

Product: GP240GH Swing Check Valve with Lever + Counterweight + Hydraulic Damping
Design Standard: API 6D – Full Bore
Body Material: BS EN 10213 GP240GH
Nominal Size: DN250
Nominal Class: PN16
Connection Ends: RF Flanged Ends
Face to Face: As per EN 558-1/Line 48 (DIN 3202 F6)
Test and Inspection: API 598

Other Features:

Bolted cover
API 6D – Full Bore, BS 1868 – Standard Bore
Available with Inside or Outside Shaft
Outside Shaft: Can be fitted with Lever + Counterweight
Large-sized check valves can be equipped with hydraulic damping cylinders

Technical Parameters and Characteristics:

Product Type: Swing Type Check Valve
Size Range: NPS 2 Inch - 24 Inch, DN50 - DN600
Design Pressure: Class 150 - 2500 LB, PN10 - PN420
Design Standard: BS 1868, API 6D, DIN 3352
Design Temperature: -196°C to 593°C

Material Options:
ASTM A216 WCB, ASTM A216 WCC
ASTM A217 WC6, ASTM A217 WC9
ASTM A217 C5, ASTM A217 C12A
ASTM A352 LCB, ASTM A352 LCC
ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C
CN3MN, CK3MCUN, CN7M
ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN), ASTM A890 6A (CD3MWCuN)
ASTM B148 C95800, ASTM B148 C95500

Connection Ends: ASME B16.5, ASME B16.25, EN 1092 Series
Applications: Electric power, petroleum refining, petrochemical engineering, offshore oil, chemical engineering
