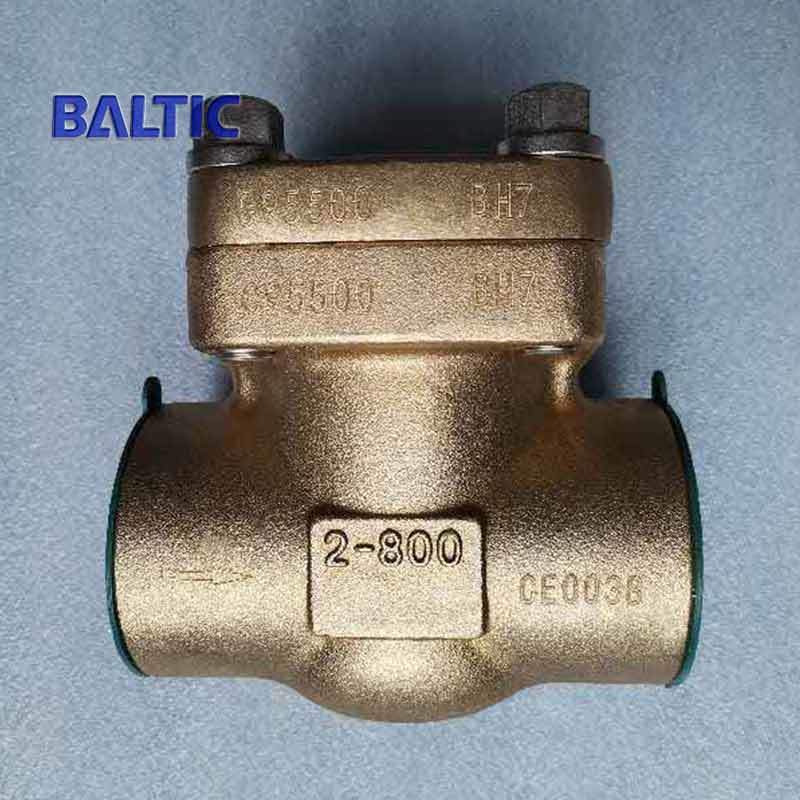

API 602 Swing Check Valve, ASTM B148 C95500, 2 Inch, 800 LB

API 602 Swing Check Valve Fabricator: API 602 Check Valve, Swing Type, Bronze ASTM B148 C95500, 2 Inch, Class 800 LB, FNPT, Full Bore or Reduced Bore.

Tags:

• API 602 Check Valve
• Swing Type Check Valve
• 2 Inch Check Valve
• Class 800 LB Check Valve
• Full Bore Check Valve
• Reduced Bore Check Valve
• FNPT Check Valve
• Aluminium Bronze Check Valves
• ASTM B148 C95500 Check Valve

Product: Small size check valve, Swing type.
Design: API 602.
Body: ASTM B148 C95500.
Nominal size: 2 Inch.
Nominal class: Class 800 LB.
End connection: FNPT ends.
Face to face: As per manufacture's std.
Test and inspection: API 598.

Technical parameters and characteristics
Product: Small size check valve.
Nominal diameter: 1/4 to 4IN.
Design temp.: -29℃ to 260℃.
Design pressure: Class 150 to 900.
Materials: ASTM B148 C95400, C95500, C95800; ASTM B150 C63000, C63200.
Design standards: API 602; BS 1868, ASME B16.34.
Face to face: Manufacture standard, ASME B16.10.
Connection ends: NPT, Flange.
Test standards: API 598, ISO 520.
Operation: X.
Applications: for sea water, offshore and marine.
Function 1: Bolted bonnet.
Function 2: Swing type, lift type.
Function 3: Full bore and reduce bore.
Function 4: Integral flanged ends and F-NPT ends.
