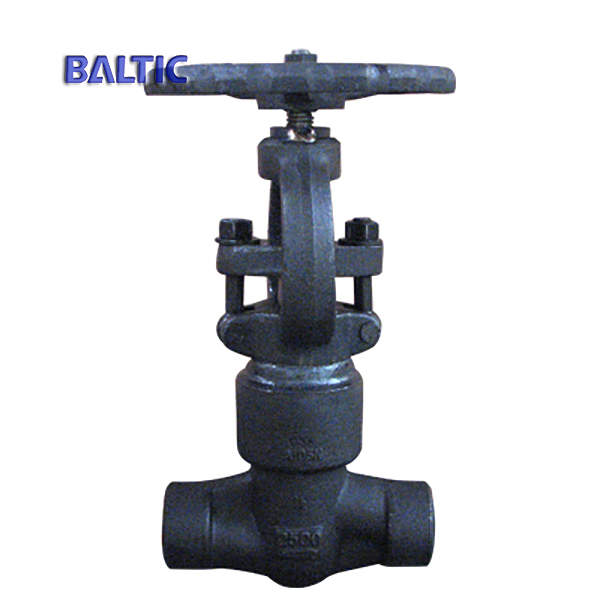

API 602 Reduce Bore Globe Valve, A105N, DN15, PN420, BW Ends

Key Specifications / Features

Model No.: 1-3 Hits: 65

China Small Size Globe Valve Company Baltic Supplies API 602 Reduce Bore Globe Valve: ASTM A105N, DN15, PN420, BW Ends, FF Manufacture Standard.

Request a quote Share

Tags:

Next: Pressure Seal Bonnet Globe Valve, A182 F11, 3/4IN, CL2500, BW

Previous: Globe Valve with Regulating Disc, A105N, 1.5IN, CL600, API 602, RF

Detail Information

Valve descriptions
Product: Small size globe valve, reduce bore.
Design: API 602.
Body: ASTM A105N.
Nominal size: DN15 (1/2 Inch).
Nominal class: PN420 (CL 2500).
Connection ends: butt welded ends.
Face to face: as per manufacture standard.
Test and inspection: API 598.

Technical parameters and characteristics

Product	Small size globe valve
Nominal diameter	1/4"-2"
Design temp.	-196℃-593℃
Design pressure	Class 150-2500
Material	Forged carbon steel, SS, ally steel, duplex SS, nickel based alloy
Design standard	API 602, BS5352
Face to face	Manufacture standard, ASME B16.10
Connection end	NPT, SW, BW, RF, RTJ
Test standard	API 598, ISO 5208
Operation	Hand wheel, electric
Application	Power station, petroleum, tap water engineering, chemical engineering
Function 1	bolted bonnet, welded bonnet, pressure seal bonnet
Function 2	plug disc, needle disc
Function 3	full bore, reduce bore
Function 4	Integral flanged ends、welded on flanged ends
