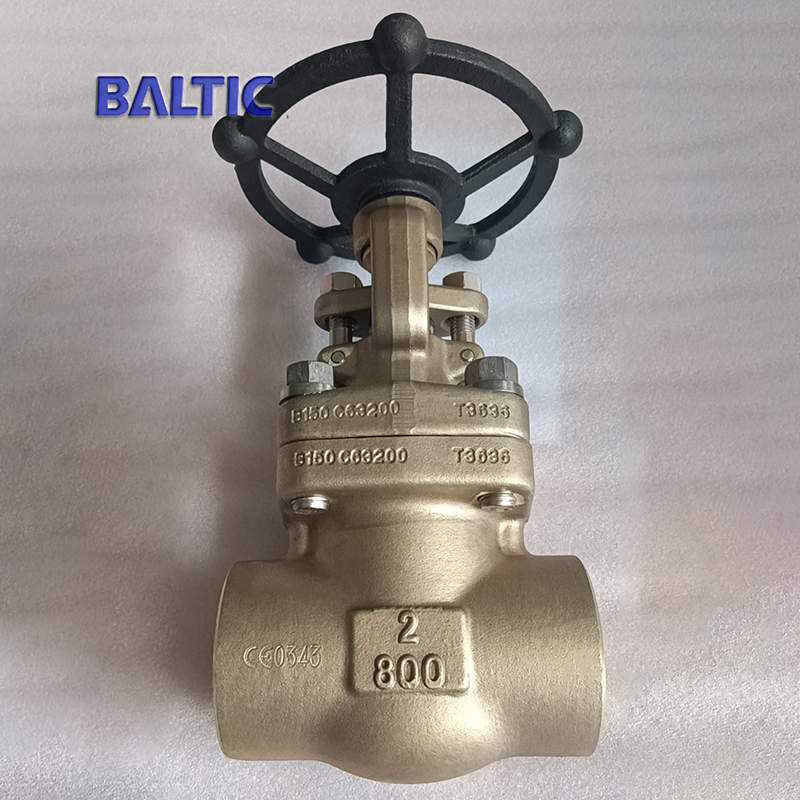

API 602 Gate Valve, ASTM B150 C63200, 2 Inch, 800 LB, NPT

Key Specifications / Features

Model No.: Hits: 25

API 602 Gate Valve Fabricator: Small Size API 602 Gate Valves, Aluminium Bronze ASTM B150 C63200, Bolted Bonnet, NPT End, 2 Inch, Class 800 LB.

Request a quote Share

Tags:

Next: API 602 Aluminum Bronze Gate Valve, C63200, 2 IN, CL150, RF

Previous: ASTM B148 C95800 Gate Valve, 1.5 Inch, Class 300, API 602, RF

Detail Information

Name: Small size gate valve, aluminum bronze gate valve.
Design: API 602.
Material: ASTM B150 C63200.
Nominal size: 2 Inch.
Nominal class: 800 LB.
Connection ends: NPT.
Face to face: manufacture standard = 140mm.
Test and inspection: API 598.

Technical parameters and characteristics

Product	Small size gate valve
Nominal diameter	1/4" - 4"
Design temp.	-29℃ - 260℃
Design pressure	Class 150 - 900, PN10 - PN160.
Material	ASTM B148 C95400, C95500, C95800 ASTM B150 C63000, C63200.
Design standard	API 602, BS5352
Face to face	Manufacture standard, ASME B16.10
Connection end	NPT, Flange
Test standard	API 598, ISO 5208
Operation	Hand wheel, electric
Application	for sea water, offshore and marine.
Function 1	Bolted bonnet
Function 2	solid wedge
Function 3	Full bore, reduce bore
Function 4	Integral flanged ends, F-NPT ends
