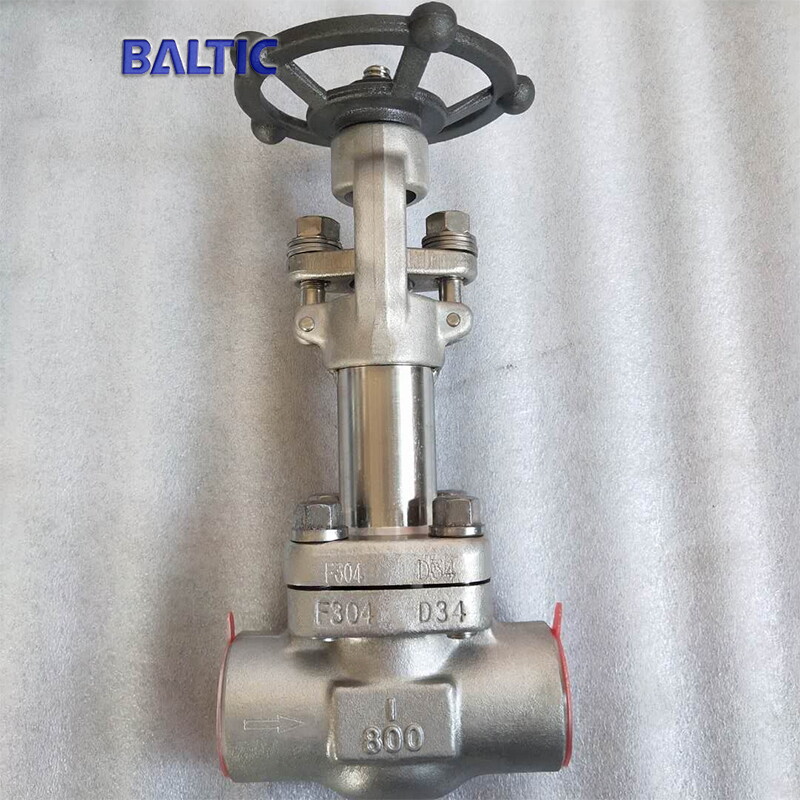

• API 602 Cryogenic Globe Valve, 1 IN, 800 LB, A182 F304, SW
API 602 Cryogenic Globe Valve, 1 IN, 800 LB, A182 F304, SW

API 602 Cryogenic Globe Valve, 1 IN, 800 LB, A182 F304, SW

API 602 Cryogenic Globe Valve, 1 IN, 800 LB, A182 F304, SW

Key Specifications / Features

Model No.: Hits: 9

Get high-quality API 602 cryogenic globe valves from a trusted provider. This stainless steel valve, measuring 1 inch and rated at 800 LB (DN25, PN130), conforms to ASTM A182 F304 standards. Specifically designed for applications in the LPG and LNG industries, it features a socket weld (SW) end for easy installation and reliable performance.
Request a quote Share

Next: Stainless Steel Cryogenic Globe Valve, 2 Inch, 2500 LB, SW

Previous: Extended Stem Aluminium Bronze Globe Valve, 1/2 Inch, 800 LB, NPT

Detail Information

Valve description:
Name: Cryogenic globe valve, for low temperature at -73℃.
Description: with extension stem.
Design: API 602.
Body: ASTM A182 F304.
Nominal size: 1 Inch.
Nominal class: 800 LB.
End connection: SW.
Face to face: as per manufacture standard.
Test and inspection: API 598.

Technical parameters and characteristics
Product Small-size cryogenic gate valve
Nominal diameter 1/4 - 4 Inch
Design temp. Down to -73℃
Design pressure Class 150 - 1500 LB
Material Stainless steel
Design standard API 602, BS 5352
Face to face Manufacture standard, ASME B16.10
Connection end SW, BW, Flange
Test standard API 598, ISO 5208
Operation Hand wheel, electric
Application LPG, LNG
Special treatment Deep cryogenic treatment.
Special test Impact test.
Function 1 Bolted bonnet, welded bonnet, pressure seal bonnet
Function 2 Short stroke for easy – quick open/close
Function 3 Disc sealing could be: flat sealing, throttle cone=regulating disc
Function 4 The body seat could be a threaded seat or welded seat
Structure feature 1 Extended Bonnet.
Structure feature 2 With drip plate.
Structure feature 3 Fire Safety & Anti-static Design.
