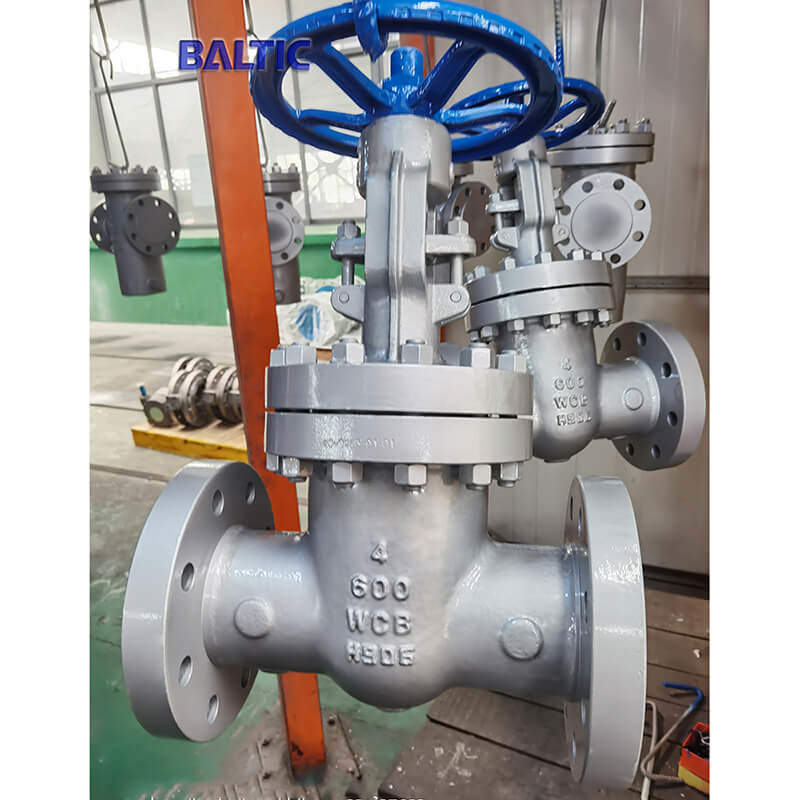

4 Inch Flexible Wedge Gate Valve, API 600, WCB, 600 LB

Introducing our top-quality 4 Inch Flexible Wedge Gate Valve, manufactured by a reputable company. This gate valve is designed with precision, featuring a DN100 size and a Class 600 LB rating. It complies with API 600 and ASTM A216 WCB standards, ensuring reliability and durability. The valve is equipped with an RF flange and is available in a wide range of sizes, from NPS 2 to 60 Inch. It can handle varying pressure requirements, ranging from Class 150 to 2500 LB. Trust this high-performance gate valve for efficient and safe fluid control in your industrial applications. Contact us today for more information.

Tags:

• 4 Inch Gate Valve
• Flexible Wedge Gate Valve
• API 600 Gate Valve
• ASTM A216 WCB Gate Valve
• Class 600 LB Gate Valve
• DN100 Gate Valve
• PN100 Gate Valve
• RF Gate Valve

Valve description:
Product name: Flexible wedge gate valve, class 600 series.
Design: API 600.
Material: ASTM A216 WCB.
Nominal size: 4 Inch.
Nominal class: 600 LB.
Connection ends: RF flange - ASME B16.5.
Face to face: ASME B16.10.
Test and inspection: API 598.

Other features
Bolted bonnet type or pressure seal bonnet
Flexible wedge, full bore
For pressure seal bonnet type:
The bonnet gasket is to be metal sealing, RTJ ring - SS 304 for long service.
The threaded stem does not contact the medium, to avoid the possibility of corrosion

Technical Parameters and Characteristics
Product type: Gate valve.
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Design pressure: class 150 - 2500 LB, PN10 - PN420.
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design temp.:  -196℃  -  573℃.
Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9,
ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC
ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C
CN3MN, CK3MCUN, CN7M, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN),
ASTM A890 6A (CD3MWCuN)
ASTM B148 C95800, ASTM B148 C95500
Connection end: ASME B16.5, ASME B16.25, EN 1092 series.
Operation: Hand wheel, gearbox, electric
Application: electric power, petroleum refining, petrochemical engineering,
offshore oil, chemical engineering
