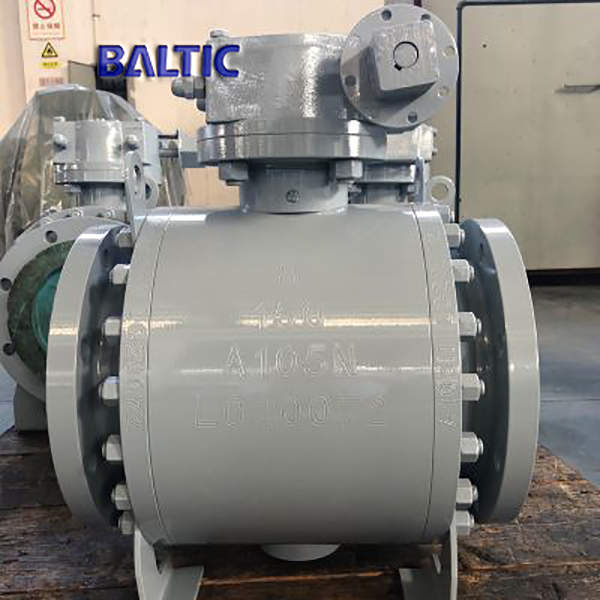

• 3PC Metal Seat Ball Valve, A105N, API 6D, 8 Inch, 150 LB, RF

3PC Metal Seat Ball Valve, A105N, API 6D, 8 Inch, 150 LB, RF

3PC Metal Seat Ball Valve, A105N, API 6D, 8 Inch, 150 LB, RF

Key Specifications / Features

Model No.: MSBV-06 Hits: 97

3PC Metal Seat Ball Valve Manufacturer in China: 3-PC Metal Seat Ball Valve, ASTM A105N, 8 Inch, 150 LB, Trunnion Mounted, API 6D, RF Ends, Gearbox.
Request a quote Share

Detail Information

Product description:
Name: 3PC Metal Seat Ball Valve, A105N, API 6D, 8 Inch, 150 LB, RF
Design: API 6D
3PC body, Trunnion Mounted, Solid
Ball, Full Bore, Fire Safe Design,
Anti-Static Device,
Blow Out Proof Stem

Connection: RF . ASME B16.5
Face to Face dimension: ASME B16.10 = 457 MM
Materials:
Body: ASTM A105N
Ball: ASTM A182 F316 + TCC
Stem: ASTM A479 Gr. XM-19
Seat: ASTM A182 F316 + TCC
Flexible Graphite Seal
Stud/Nut: B7M/2HM, HDG
As per NACE MR 0175
Operation: Gearbox
