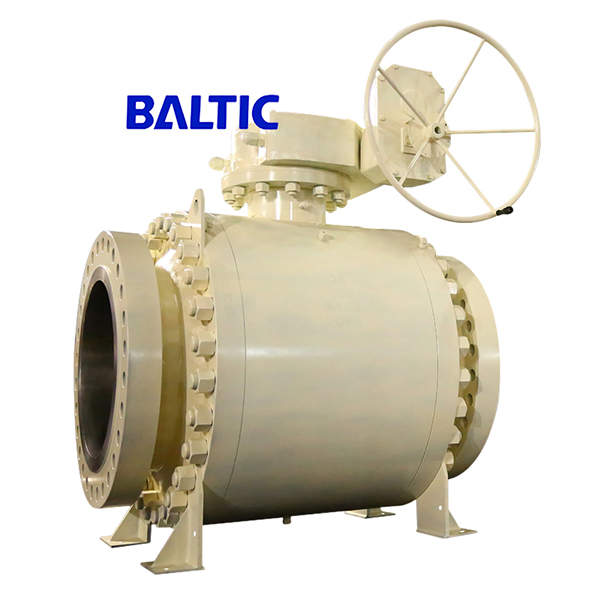

32 Inch Metal Seated Ball Valve, Class 300, ASTM A105N, RF, API 6D

Big Size Metal Seated Ball Valve Supplier in China: 32 Inch Metal Seated Ball Valve, Class 300, ASTM A105N, RF Flanged, Big Size, API 6D, T&I: API 598.

Tags:

• Metal Seated Ball Valve
• 32 Inch Ball Valve
• ASTM A105N Ball Valve
• RF Ball Valve
• API 6D Ball Valve
• Class 300 LB Ball Valve

Quick Detail:
Big size, metal seated ball valve.
Design: API 6D.
Body: ASTM A105N.
Nominal size: 32 Inch.
Nominal class: 300 LB.
End Connection: RF flange.
Face to face: as per ASME B16.10.
Test and inspection: API 598.

Product Range：
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2 - 60 Inch (DN15 - DN1500).
End connection: BW, Flanged.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature: -46℃ - +540℃.
