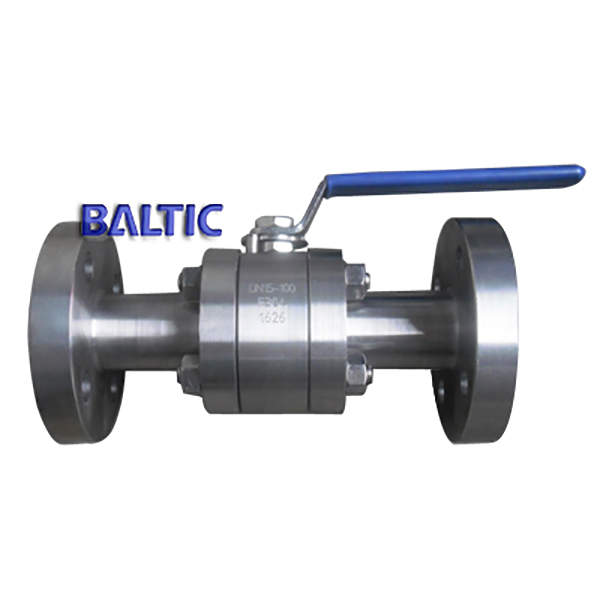

3-PC Side Entry Floating Ball Valve, F304, DN15, PN100, API 6D, RF

Key Specifications / Features

Model No.: 1-1 Hits: 207

China Side Entry Floating Ball Valve Manufacturer Baltic Offers Floating Ball Valve, 3-PC, Side Entry, API 6D, DN15, PN100, RF, FF EN558-1/line 2.

Request a quote Share

Tags:

Next: 2-PC Side Entry Floating Ball Valve, A216 WCB, 4INh, CL600, RF

Detail Information

Valve description:
Name: Side entry floating ball valve, 3-PC type.
Design: API 6D.
Body: F304.
Nominal size: DN15.
Nominal class: PN100.
Connection ends: RF flanged ends.
Face to face: as per EN558-1/line 2.
Test and inspection: API 598.

Technical parameters and characteristics

Product	Side Entry Floating Ball Valve
Nominal diameter	1/2" - 8"	(DN15 - DN200)
Design temp.	-46℃ - 121℃
Design pressure	Class 150 - 2500	(PN16 - PN420)
Material	WCB, A105, LCB, LF2, CF8, F304, CF8M, F316
Design standard	API 6D, ISO 17292, BS 5351
Face to face	ASME B16.10, Manufacture Standard	EN558 series, Manufacture Standard
Connection end	ASME B16.5, ASME B16.25, ASME B16.11, ASME B1.20.1	EN1092-1 series
Test standard	API 598, API 6D	EN12266-1
Operation	level, worm gear, electric, pneumatic
Application	water, petroleum and natural gas
Feature 1	locking device
Feature 2	anti-blow out stem
Feature 3	fire safe and anti-static device
Feature 4	full bore,reduce bore
