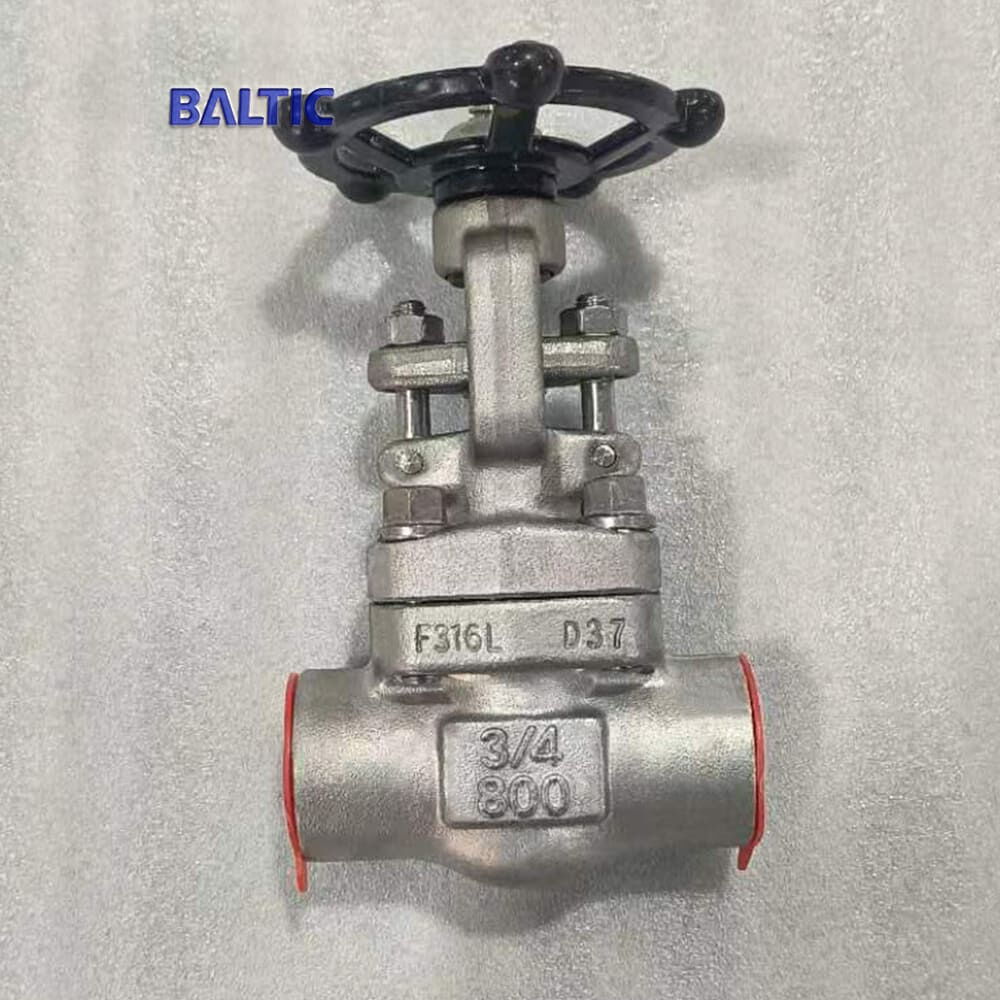

• 3/4 Inch Gate Valve, API 602, A182 F316L, CL800, Reduced Bore

3/4 Inch Gate Valve, API 602, A182 F316L, CL800, Reduced Bore

3/4 Inch Gate Valve, API 602, A182 F316L, CL800, Reduced Bore

Key Specifications / Features

Model No.: BV-GTV-20250308-06 Hits: 5

As a trusted 3/4-inch gate valve supplier in China, we offer high-quality valves designed for durability and performance. Constructed from ASTM A182 F316L stainless steel, our gate valves provide excellent corrosion resistance and reliability. With a reduced bore design, they are available in DN20 size and rated for Class 800 LB (PN130), making them ideal for high-pressure applications. Featuring socket welding (SW) ends for secure connections, these valves undergo rigorous API 598 testing and inspection to ensure optimal performance and leak-tight sealing in demanding industrial environments.
Request a quote Share

Detail Information

Class 800 LB Gate Valves, 3/4 Inch, ASTM A182 F316L, SW.

Valve Description:
Name: Small Size Gate Valve, Reduced Bore.
Design: API 602
Body Material: ASTM A182 F316L
Nominal Size: 3/4 Inch, DN20
Nominal Class: Class 800 LB, PN130
End Connection: SW Ends
Face to Face: Manufacturer Standard
Test and Inspection: API 598

Technical Parameters And Characteristics

Product Item

Small Size Gate Valve

Nominal Diameter

1/4 Inch - 4 Inch

Design Temp.

 -196°C - 573°C

Design Pressure

Class 150 LB - Class 4500 LB

Material

Carbon Steel, Stainless Steel, Alloy steel, Bronze

Design Standard

API 602, BS 5352

Face to Face

Manufacturer Standard, ASME B16.10

Connection End

NPT, SW, BW, Flange

Test Standard

API 598, ISO 5208

Operation

Hand Wheel, Electric

Application

Power Station, Petroleum, Chemical Engineering

Function 1

Bolted Bonnet, Welded Bonnet, Pressure Seal Bonnet

Function 2

Solid Wedge

Function 3

Full Bore, Reduce Bore

Function 4

Integral Flanged Ends, Welded on Flanged Ends
