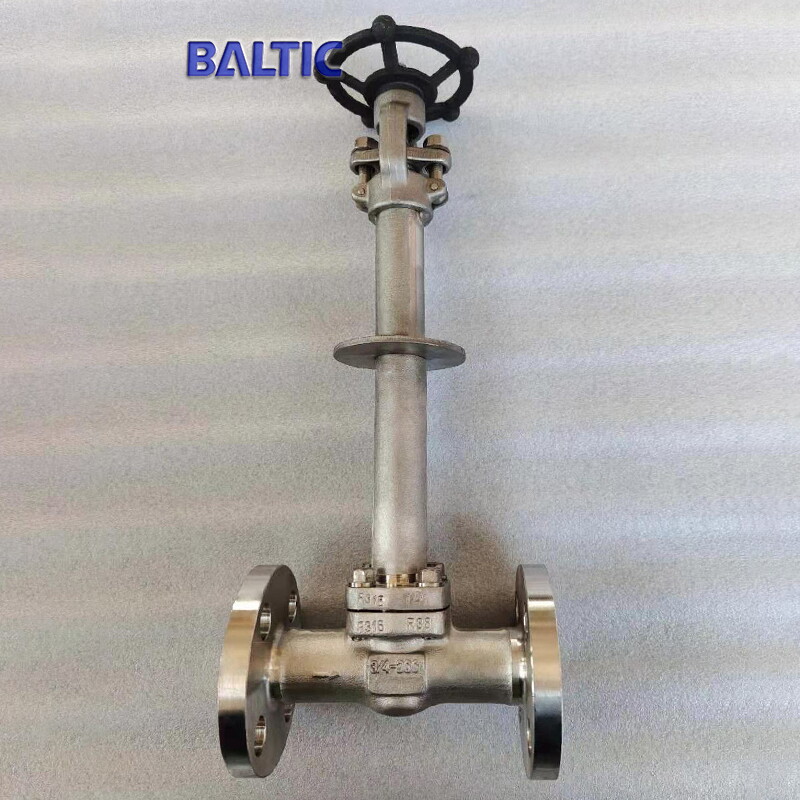

• 3/4 Inch Cryogenic Globe Valve, 300 LB, API 602, A182 F316
3/4 Inch Cryogenic Globe Valve, 300 LB, API 602, A182 F316

3/4 Inch Cryogenic Globe Valve, 300 LB, API 602, A182 F316

3/4 Inch Cryogenic Globe Valve, 300 LB, API 602, A182 F316

Key Specifications / Features

Model No.: Hits: 2

Shop our top-quality 3/4-inch cryogenic Globe Valve crafted to API 602 standards, rated at 300 LB with a DN20 size and PN50 pressure rating. Constructed from durable Stainless Steel, ASTM A182 F316, featuring RF design. Engineered with a Short Stroke for effortless and rapid opening and closing. Ideal for various industrial applications.
Request a quote Share

Next: Class 300 LB Cryogenic Globe Valve, 1 IN, ASTM A182 F304, RF

Previous: Extended Stem Aluminium Bronze Globe Valve, 1/2 Inch, 800 LB, NPT

Detail Information

Valve description:
Name: Cryogenic globe valve, for low temperature at -196℃.
Description: with extension stem and drip plate.
Design: API 602.
Body: ASTM A182 F316.
Nominal size: 3/4 Inch.
Nominal class: 300 LB.
Ends connection: RF flange.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product Small-size cryogenic gate valve
Nominal diameter 1/4 - 4 Inch
Design temp. Down to -196℃
Design pressure Class 150 - 1500 LB
Material Stainless steel
Design standard API 602, BS 5352
Face to face Manufacture standard, ASME B16.10
Connection end SW, BW, Flange
Test standard API 598, ISO 5208
Operation Hand wheel, electric
Application LPG, LNG
Special treatment Deep cryogenic treatment.
Special test Impact test.
Function 1 Bolted bonnet, welded bonnet, pressure seal bonnet
Function 2 Short stroke for easy – quick open/close
Function 3 Disc sealing could be: flat sealing, throttle cone=regulating disc
Function 4 The body seat could be a threaded seat or welded seat
Structure feature 1 Extended Bonnet.
Structure feature 2 With drip plate.
Structure feature 3 Fire Safety & Anti-static Design.
