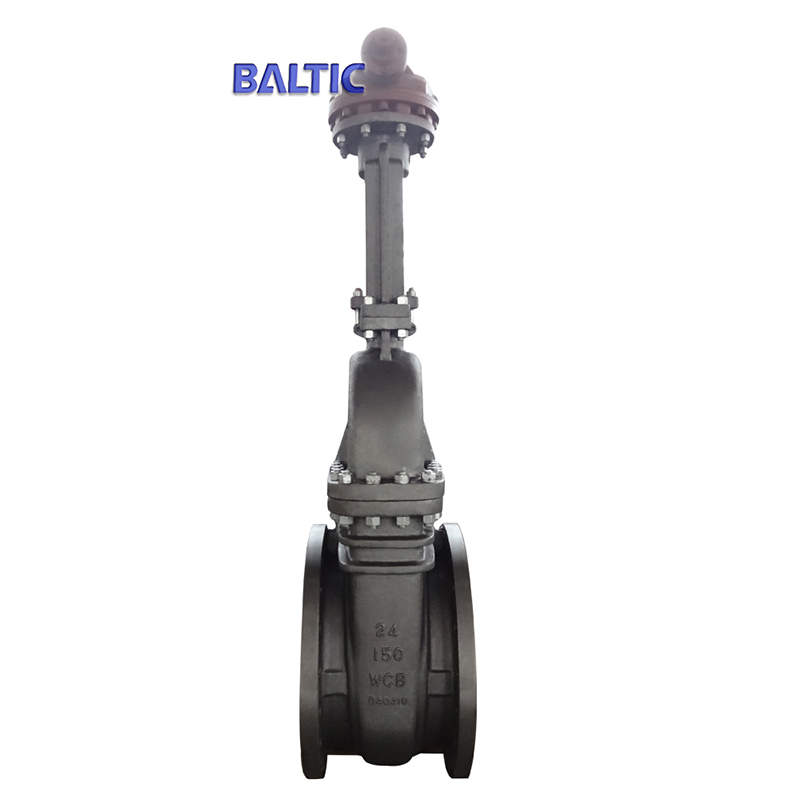

24 Inch Flexible Wedge Gate Valve, 150 LB, WCB, API 600, RF

Introducing our top-quality Flexible Wedge Gate Valve, designed for optimal performance in industrial applications. This valve, with a size of DN600 (24 inches) and a pressure rating of PN20 (150 LB), is constructed using ASTM A216 WCB material, ensuring durability and reliability. Manufactured according to API 600 standards, it features an RF flange for secure connection and can be equipped with either a Bolted Bonnet or a Pressure Seal Bonnet, providing flexibility for your specific requirements. With a face-to-face dimension complying with FF ASME B16.10, this gate valve is a dependable choice for various industrial systems.

Tags:

• 24 Inch Gate Valve
• Flexible Wedge Gate Valve
• Class 150 LB Gate Valve
• ASTM A216 WCB Gate Valve
• API 600 Gate Valve
• RF Gate Valve
• DN600 Gate Valve
• PN20 Gate Valve

Valve description:
Product name: Flexible wedge gate valve, class 150 series.
Design: API 600.
Material: ASTM A216 WCB.
Nominal size: 24 Inch.
Nominal class: 150 LB.
Connection ends: RF flange - ASME B16.5.
Face to face: ASME B16.10.
Test and inspection: API 598.

Other features
Bolted bonnet type or pressure seal bonnet
Flexible wedge, full bore
For pressure seal bonnet type:
The bonnet gasket to be metal sealing, RTJ ring - SS 304 for a long service.
Threaded stem does not contact the medium, to avoid possibility of corrosion

Technical Parameters and Characteristics
Product type: Gate valve.
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Design pressure: class 150 - 2500 LB, PN10 - PN420.
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design temp.:  -196℃  -  573℃.
Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9,
ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC
ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C
CN3MN, CK3MCUN, CN7M, ASTM A890 4A(CD3MN), ASTM A890 5A(CE3MN),
ASTM A890 6A(CD3MWCuN)
ASTM B148 C95800, ASTM B148 C95500
Connection end: ASME B16.5, ASME B16.25, EN 1092 series.
Operation: Hand wheel, gearbox, electric
Application: electric power, petroleum refining, petrochemical engineering,
offshore oil, chemical engineering
