2-PC Trunnion Ball Valve, A216 WCB, API 6D, 8 Inch, 600 LB, RF

Key Specifications / Features

Model No.: 1-4 Hits: 218

China 2-PC Trunnion Ball Valve Supplier Provides ASTM A216 WCB 2-PC Trunnion Mounted Ball Valve, 8 Inch, 600 LB, API 6D, RF Ends, API 598 Inspection.

Request a quote Share

Tags:

Next: API 6D Trunnion Mounted Ball Valve, Pneumatic Actuator, CL900

Previous: 3-PC Trunnion Mounted Ball Valve, Side Entry, GS-C25, DN800 PN16 RF

Detail Information

Valve description:
Name: Side entry trunnion mounted ball valve, 2-PC type.
Design: API 6D.
Body: ASTM A216 WCB.
Nominal size: 8 Inch.
Nominal class: Class 600.
Connection ends: RF flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics

Product	Side Entry Trunnion Mounted Ball Valve
Nominal diameter	2" - 56"	(DN50-DN1400)
Design temp.	-46℃ - 121℃
Design pressure	class 150 - 2500	(PN16-PN420)
Material	WCB, LCB, CF8M, A105, LF2, F316
Design standard	API 6D, ISO 17292
Face to face	ASME B16.10	EN558 series
Connection end	ASME B16.5, ASME B16.25	EN1092-1 series
Test standard	API 598, API 6D	EN 12266-1
Operation	level, worm gear, electric, pneumatic
Application fields	water, petroleum and natural gas
Feature 1	full bore, reduce bore
Feature 2	locking device
Feature 3	anti-blow out stem
Feature 4	fire safe and Anti-static device
Feature 5	DBB / double block and bleed
Feature 6	stem & seats to be equipped injection fitting

2-PC Trunnion Ball Valve, A216 WCB, API 6D, 8 Inch, 600 LB, RF

Key Specifications / Features

Detail Information

Similar Products

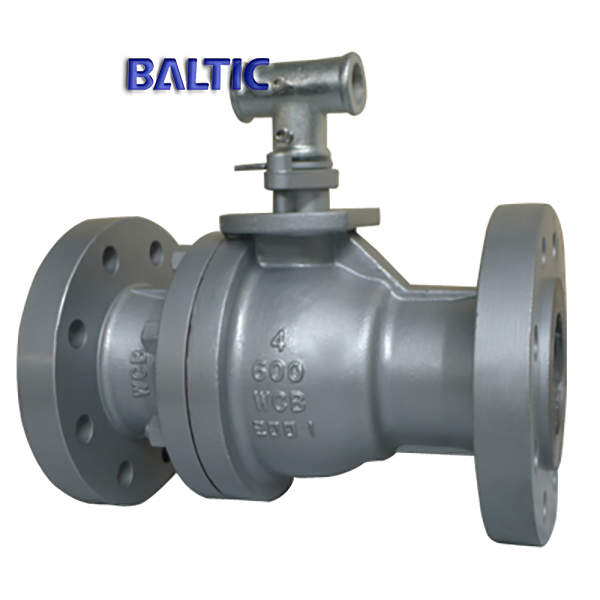

2-PC Side Entry Floating Ball Valve, A216 WCB, 4INh, CL600, RF

3-PC Side Entry TM Ball Valve, A105, API 6D, 20 Inch, 600 LB, RF

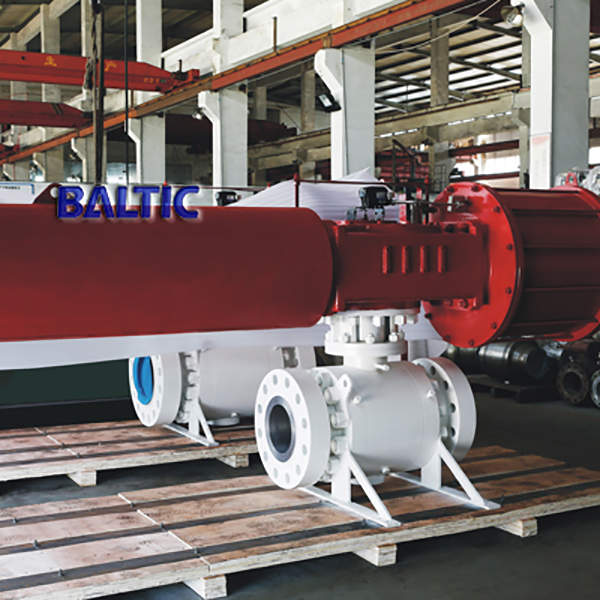

API 6D Trunnion Mounted Ball Valve, Pneumatic Actuator, CL900

ASTM A216 WCB Top Entry Ball Valve, 12 Inch, Class 600, RF Ends

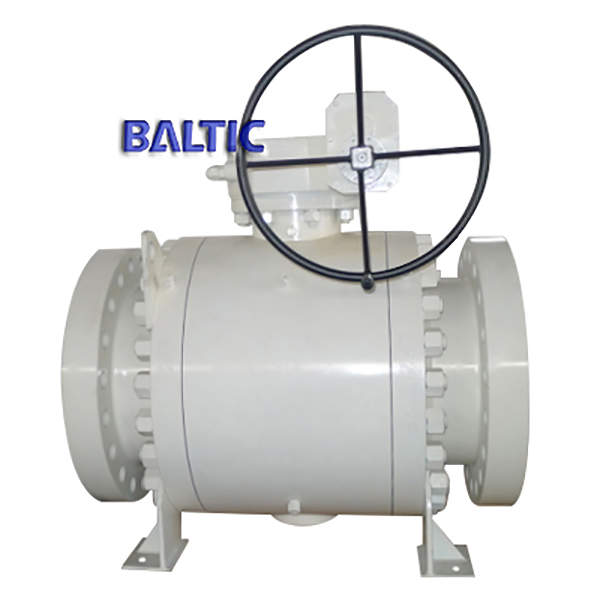

3PC SE TM Ball Valve, ASTM A182 LF2, 10IN, CL300, API6D, RF
