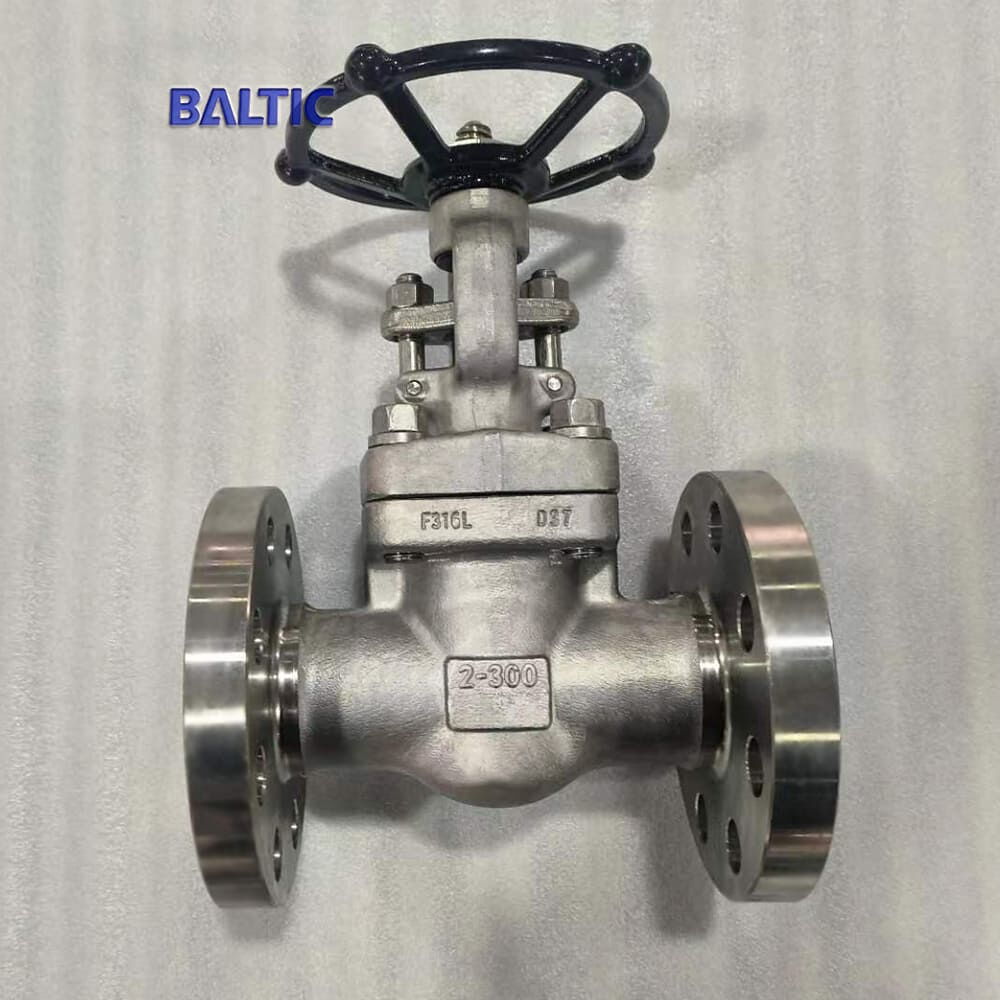

• 2 Inch Gate Valves, API 602, Stainless Steel F316L, 300 LB
2 Inch Gate Valves, API 602, Stainless Steel F316L, 300 LB

2 Inch Gate Valves, API 602, Stainless Steel F316L, 300 LB

2 Inch Gate Valves, API 602, Stainless Steel F316L, 300 LB

Key Specifications / Features

Model No.: BV-GTV-20250312-07 Hits: 1

As a leading API 602 gate valve factory, we manufacture high-quality stainless steel gate valves designed for durability and precision. This model features an ASTM A182 F316L stainless steel body, providing excellent corrosion resistance for demanding applications. With a 2-inch (DN50) size, Class 300 LB (PN50) pressure rating, and integral flanged ends, it ensures secure and efficient flow control. Built to ASME B16.10 face-to-face dimensions, this valve meets industry standards for reliable performance in oil and gas, chemical, and marine industries.
Request a quote Share

Next: 3 Inch Gate Valves, API 602, Carbon Steel ASTM A105N, 300 LB

Previous: ASTM A182 F316L Gate Valve, API 602, 1-1/2 Inch, CL300, DN40

Detail Information

Integral Flange Gate Valves, API 602, F316L.

Valve Description:
Product Name: Small Size Gate Valve, Integral Flange.
Design Standard: API 602
Body Material: ASTM A182 F316L
Nominal Size: 2 Inch, DN50
Nominal Class: Class 300 LB, PN50
End Connection: Flange Ends
Face to Face: ASME B16.10
Test and Inspection: API 598



Technical Parameters And Characteristics

Product Item

Small Size Gate Valve

Nominal Diameter

1/4 Inch - 4 Inch

Design Temp.

 -196°C - 573°C

Design Pressure

Class 150 LB - Class 4500 LB

Material

Carbon Steel, Stainless Steel, Alloy Steel, Bronze

Design Standard

API 602, BS 5352

Face to Face

Manufacturer Standard, ASME B16.10

Connection End

NPT, SW, BW, Flange

Test standard

API 598, ISO 5208

Operation

Hand Wheel, Electric

Application

Power Station, Petroleum, Chemical Engineering

Function 1

Bolted Bonnet, Welded Bonnet, Pressure Seal Bonnet

Function 2

Solid Wedge

Function 3

Full Bore, Reduce Bore

Function 4

Integral Flanged Ends, Welded on Flanged Ends
