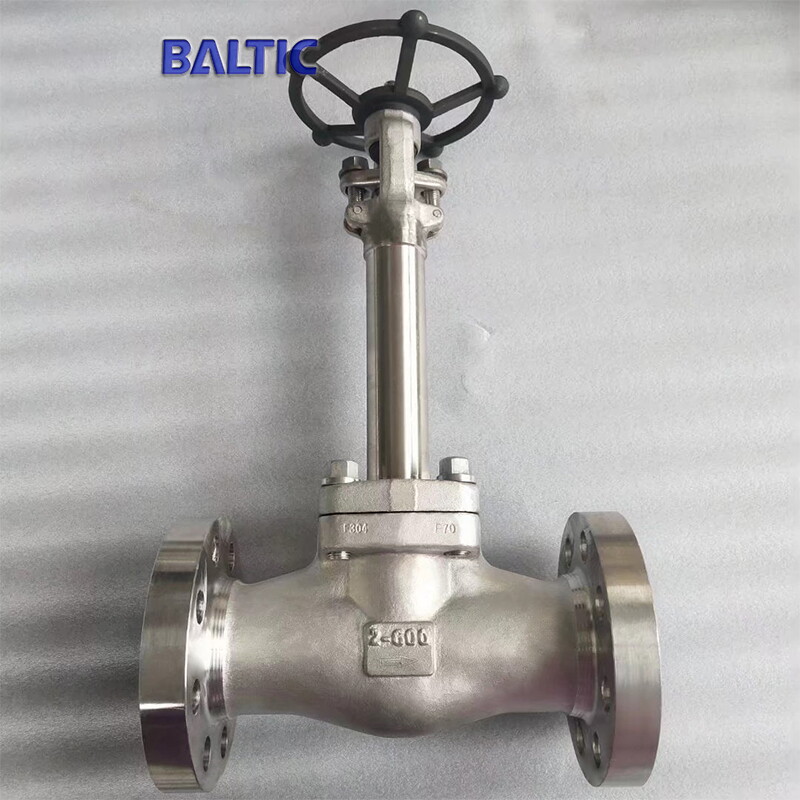

• 2 Inch Cryogenic Globe Valve, 600 LB, ASTM A182 F304, API 602
2 Inch Cryogenic Globe Valve, 600 LB, ASTM A182 F304, API 602

2 Inch Cryogenic Globe Valve, 600 LB, ASTM A182 F304, API 602

2 Inch Cryogenic Globe Valve, 600 LB, ASTM A182 F304, API 602

Key Specifications / Features

Model No.: Hits: 17

Purchase a high-quality 2 Inch Cryogenic Globe Valve designed for Class 600 LB applications, constructed from ASTM A182 F304 material, compliant with API 602 standards. This valve features DN50 sizing, PN100 pressure rating, and RF Flange connection as per BS 5352 specifications. Suitable for a wide range of applications, with available sizes ranging from 1/4 to 4 Inch and pressure ratings from 150 to 1500 LB. Versatile functionality with DN8 to DN100 sizing options and PN20 to PN250 pressure ratings.
Request a quote Share

Next: Class 1500 LB Cryogenic Globe Valve, 1-1/2 IN, API 602, F304

Previous: Extended Stem Aluminium Bronze Globe Valve, 1/2 Inch, 800 LB, NPT

Detail Information

Valve description:
Name: Cryogenic globe valve, for low temperature at -196℃.
Description: with extension stem.
Design: API 602.
Body: ASTM A182 F304.
Nominal size: 2 Inch.
Nominal class: 600 LB.
Ends connection: RF flange.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product Small-size cryogenic gate valve
Nominal diameter 1/4 - 4 Inch
Design temp. Down to -196℃
Design pressure Class 150 - 1500LB
Material Stainless steel
Design standard API 602, BS 5352
Face to face Manufacture standard, ASME B16.10
Connection end SW, BW, Flange
Test standard API 598, ISO 5208
Operation Hand wheel, electric
Application LPG, LNG
Special treatment Deep cryogenic treatment.
Special test Impact test.
Function 1 Bolted bonnet, welded bonnet, pressure seal bonnet
Function 2 Short stroke for easy – quick open/close
Function 3 Disc sealing could be: flat sealing, throttle cone=regulating disc
Function 4 The body seat could be a threaded seat or welded seat
Structure feature 1 Extended Bonnet.
Structure feature 2 With drip plate.
Structure feature 3 Fire Safety & Anti-static Design.
