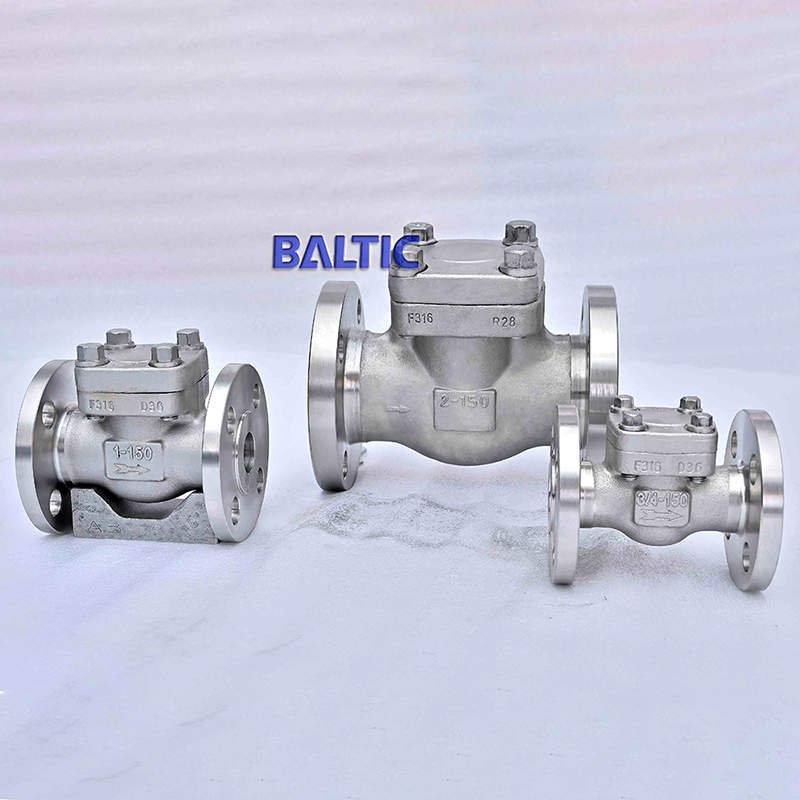

2 Inch 150 LB Swing Check Valve, ASTM A182 F316, API 602

Key Specifications / Features

Model No.: Hits: 100

2 Inch 150 LB Swing Check Valve Factory: API 602 Swing Check Valves, ASTM A182 F316, 2 Inch, Class 150 LB, RF Flanged, Test API 598, FF ASME B16.10.

Request a quote Share

Tags:

Next: 1-1/2 Inch Swing Check Valve, ASTM A182 F316, 150 LB, RF

Previous: ASTM A182 F304 Small Size Lift Check Valve, 1 Inch, 150 LB, RF

Detail Information

Valve Description
Name: Small Size Check Valve, Swing Type
Design: API 602
Body: ASTM A182 F316
Nominal Size: 2 Inch
Nominal Class: Class 150 LB
End Connection: RF Flanged Ends
Face to Face: ASME B16.10
Test and Inspection: API 598

Technical Parameters and Characteristics
Product: Small Size Gate Valve
Nominal Diameter: 1/4 Inch - 4 Inch
Design Temp.: -196℃ - 573℃
Design Pressure: Class 150 LB - Class 4500 LB
Material: Carbon Steel, Stainless Steel, Alloy Steel, Bronze
Design Standard: API 602, BS 5352
Face to Face: Manufacture Standard, ASME B16.10
Connection End: NPT, SW, BW, Flanged
Test Standard: API 598, ISO 5208
Operation: X
Application: Power Station, Petroleum, Chemical Engineering
Function 1: Bolted Bonnet, Welded Bonnet, Pressure Seal Bonnet
Function 2: Swing Type, Lift Type
Function 3: Full Bore, Reduced Bore
Function 4: Integral Flanged Ends, Welded on Flanged Ends
