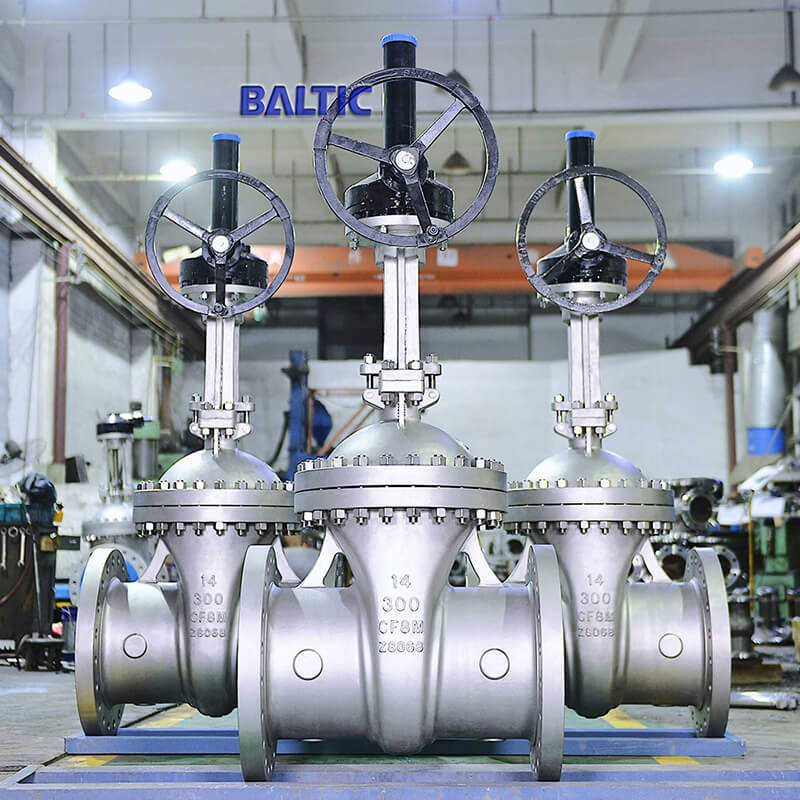

14 Inch Gate Valve, 300 LB, ASTM A351 CF8M, API 600, RF

Looking for a reliable 14-inch gate valve provider? Look no further! We offer a top-quality DN350 gate valve with Class 300 LB and PN50 ratings. Our gate valve is compliant with API 600 and made from ASTM A351 CF8M material for enhanced durability. It features a flexible wedge design and ASME B16.5 RF flange ends. Rest assured, our gate valve is thoroughly tested and meets the standards set by API 598. Trust us for all your gate valve needs!

Tags:

• Class 300 LB Gate Valve
• ASTM A351 CF8M Gate Valve
• API 600 Gate Valve
• DN350 Gate Valve
• PN50 Gate Valve
• Flexible Wedge Gate Valve

Valve description:
Product name: Flexible wedge gate valve, class 300 LB series.
Design: API 600.
Material: ASTM A351 CF8M.
Nominal size: 14 Inch.
Nominal class: 300 LB.
Connection ends: RF flange - ASME B16.5.
Face to face: ASME B16.10.
Test and inspection: API 598.

Other features
Bolted bonnet type or pressure seal bonnet
Flexible wedge, full bore
For pressure seal bonnet type:
The bonnet gasket to be metal sealing, RTJ ring - SS 304 for a long service.
Threaded stem does not contact the medium, to avoid possibility of corrosion

Technical Parameters and Characteristics
Product type: Gate valve.
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Design pressure: class 150 - 2500 LB, PN10 - PN420.
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design temp.:  -196℃  -  573℃.
Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9,
ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC
ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C
CN3MN, CK3MCUN, CN7M, ASTM A890 4A(CD3MN), ASTM A890 5A(CE3MN),
ASTM A890 6A(CD3MWCuN)
ASTM B148 C95800, ASTM B148 C95500
Connection end: ASME B16.5, ASME B16.25, EN 1092 series.
Operation: Hand wheel, gearbox, electric
Application: electric power, petroleum refining, petrochemical engineering,
offshore oil, chemical engineering
