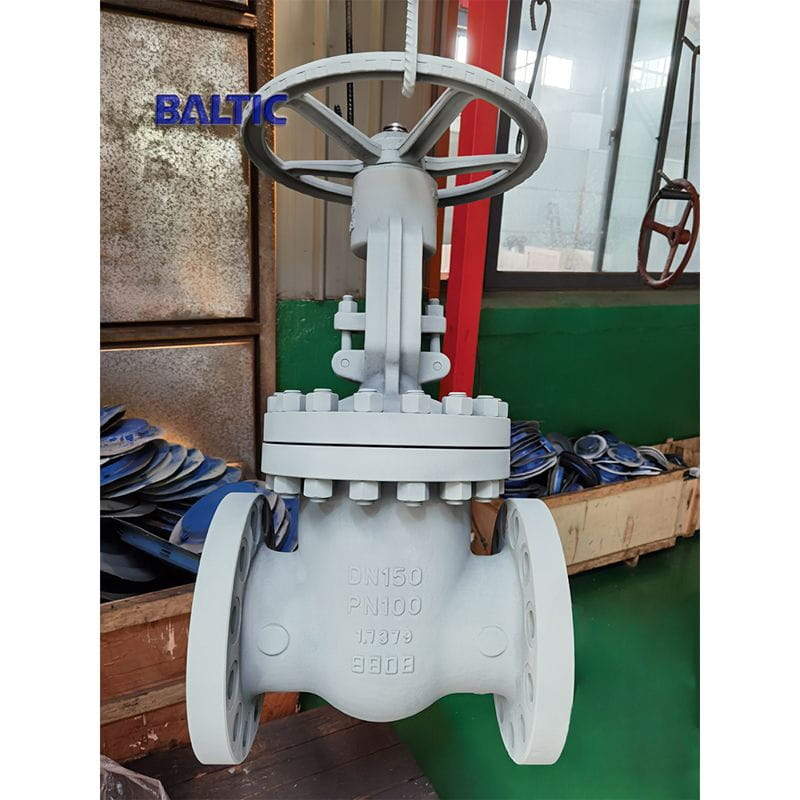

1.7379 Gate Valve, Bare Stem, DN150, PN100, DIN 3352, RF

Explore High-Pressure 1.7379 Gate Valve with Flexible Wedge, DN150, PN100, DIN 3352, 6 Inch, Class 600 LB, EN 1984. Crafted from 1.7379 and 1.7382 alloys, ASTM A217 WC9, our High-Pressure Valves are engineered for reliability.

Tags:

• DN150 Gate Valve
• PN100 Gate Valve
• DIN 3352 Gate Valve
• RF Gate Valve
• 6 Inch Gate Valve
• Class 600 LB Gate Valve
• EN 1984 Gate Valve
• Flexible Wedge Gate Valve

Valve description:
Product Name: Flexible Wedge Gate Valve, special material.
Design: EN 1984, DIN 3352
Material: 1.7379.
Nominal Size: DN150
Nominal Pressure: PN100
Connection Ends: RF X RF, as per EN 1092-1/B2
Face to Face: EN 558-1/line 26
Model of Operation: Handwheel, Gearbox, bare stem + ISO TOP flange
Test and Inspection: EN 12266-1.

Enhanced Features

Choose Between a Bolted Bonnet or Pressure Seal Bonnet Configuration
Comes with a Flexible Wedge for Full-Bore Functionality

Exclusive to the Pressure Seal Bonnet Configuration:

Incorporates a Metal-Sealed Bonnet Gasket with an RTJ Ring (Made of Stainless Steel 304) for Prolonged Durability
The Threaded Stem Design Guarantees Zero Contact with the Fluid Medium, Minimizing the Potential for Corrosion Issues

Technical Parameters and Characteristics
Product type: Gate valve.
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Design pressure: Class 150 - 2500 LB, PN10 - PN420.
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design temp.: -196℃ - 573℃.
Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9,
ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC
ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C
CN3MN, CK3MCUN, CN7M, ASTM A890 4A(CD3MN), ASTM A890 5A(CE3MN),
ASTM A890 6A(CD3MWCuN)
ASTM B148 C95800, ASTM B148 C95500
Connection end: ASME B16.5, ASME B16.25, EN 1092 series.
Operation: Hand wheel, gearbox, electric
Application: electric power, petroleum refining, petrochemical engineering,
offshore oil, chemical engineering
