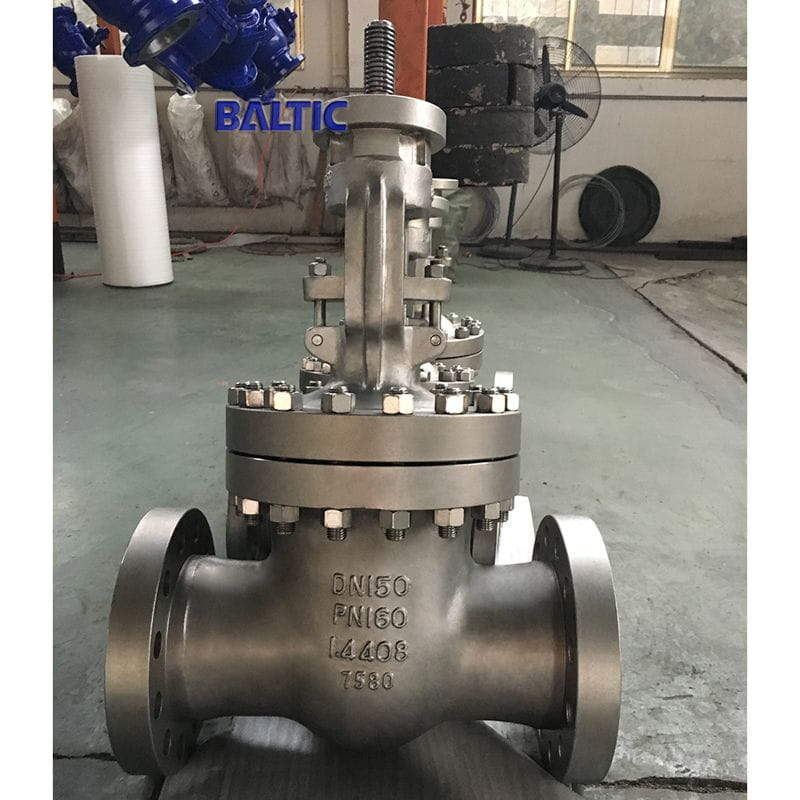

1.4408 Wedge Gate Valve, DN150, PN160, EN 1984, DIN 3352

Discover top-quality 1.4408 Flexible Wedge Gate Valve from a renowned manufacturer. This valve features a 6-inch size, Class 900 LB rating, DN150, PN160, and meets EN 1984, DIN 3352, ASTM A351 CF8M, and FF DIN 3202 F5 standards. Trust in its reliability and performance for your industrial needs.

Tags:

• DN150 Gate Valve
• PN160 Gate Valve
• 6 Inch Gate Valve
• Class 900 LB Gate Valve
• EN 1984 Gate Valve
• DIN 3352 Gate Valve
• ASTM A351 CF8M Gate Valve
• Flexible Wedge Gate Valve
• 1.4408 Gate Valve

Valve description:
Product Name: Flexible Wedge Gate Valve, high pressure
Design: EN 1984, DIN 3352
Material: 1.4408
Nominal Size: DN150
Nominal Pressure: PN160
Connection Ends: RF X RF, as per EN 1092-1/B2
Face to Face: DIN 3202 F5
Model of Operation: Handwheel, Gearbox, bare stem + ISO TOP flange
Test and Inspection: EN 12266-1

Additional functionalities: Choose between a bolted bonnet configuration or a pressure-seal bonnet system, both incorporating a flexible wedge and offering a full bore.

In the context of a pressure-seal bonnet: Utilize a metallic bonnet gasket to enhance sealing effectiveness, employing an SS 304 Ring Type Joint (RTJ) for extended durability assurance. Furthermore, implement precautions to isolate the threaded stem from the medium, thus averting possible corrosion concerns.

Technical Parameters and Characteristics
Product type: Gate valve.
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Design pressure: class 150 - 2500 LB, PN10 - PN420.
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Usage: Electricity generation, refining of raw oil, manufacturing of petrochemicals, offshore drilling in deep waters, and chemical manufacturing.
Material: ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN),
ASTM A890 6A (CD3MWCuN), ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9, ASTM A217 C5, ASTM A217 C12A, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C, ASTM A352 LCB, ASTM A352 LCC, ASTM B148 C95800, ASTM B148 C95500, CN3MN, CK3MCUN, CN7M
Connection end: ASME B16.5, ASME B16.25, EN 1092 series.
Operation: Hand wheel, gearbox, electric
Design temp.: -196℃ - 573℃.
