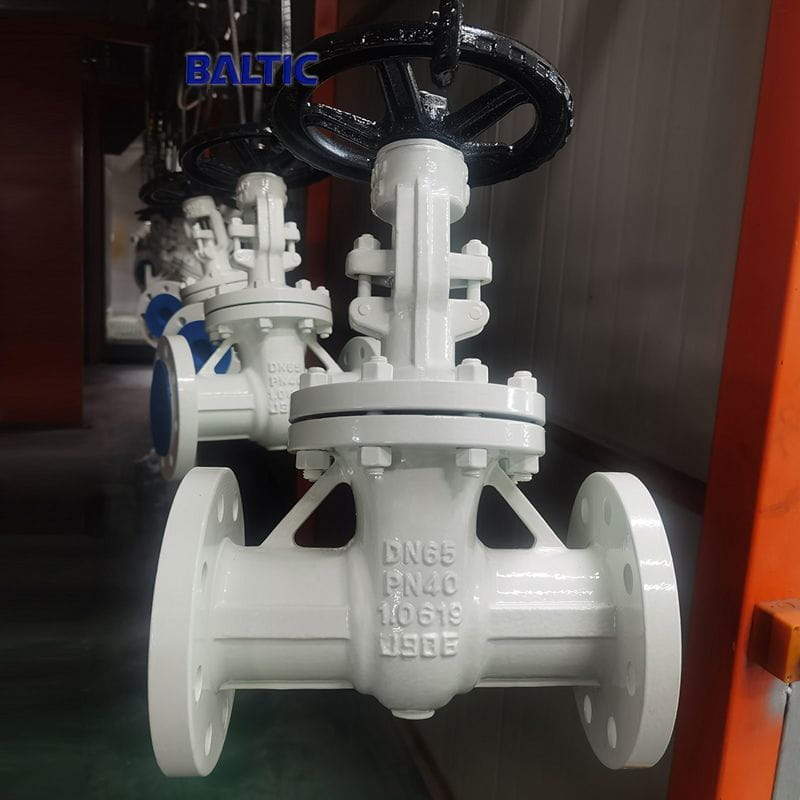

1.0619 Wedge Gate Valve, DN65, PN40, EN 1984, DIN 3352, RF

Discover a top-rated Flexible Wedge Gate Valve from a renowned manufacturer, compliant with industry standards EN 1984 and DIN 3352. This valve boasts a size of 2-1/2 inches (DN65), with a Class 300 LB and PN40 rating. Crafted from high-quality material 1.0619, it features a RF X RF connection as per EN 1092-1/B1 specifications. Enhance your system with this precision-engineered gate valve built for performance and durability.

Tags:

• DN65 Gate Valve
• PN40 Gate Valve
• EN 1984 Gate Valve
• DIN 3352 Gate Valve
• RF Gate Valve
• 2-1/2 Inch Gate Valve
• Class 300 LB Gate Valve
• Flexible Wedge Gate Valve

Valve description:
Product Name: Flexible Wedge Gate Valve.
Design: EN 1984, DIN 3352
Material: 1.0619.
Nominal Size: DN65
Nominal Pressure: PN40
Connection Ends: RF X RF, as per EN 1092-1/B1
Face to Face: EN 558-1/line 26
Model of Operation: Handwheel, Gearbox, bare stem
Test and Inspection: EN 12266-1.

Other features
Threaded stem does not contact the medium, to avoid possibility of corrosion
Bolted bonnet type
pressure seal bonnet type
Flexible wedge, full bore

Technical Parameters and Characteristics
Product type: Gate valve.
Size: 2 - 60 Inch, DN50 - DN1500.
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design pressure: Class 150 - 2500 LB, PN10 - PN420.
Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9,
ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC
ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C
CN3MN, CK3MCUN, CN7M, ASTM A890 4A(CD3MN), ASTM A890 5A(CE3MN),
ASTM A890 6A(CD3MWCuN)
Design temp.: -196℃  -  573℃.
Connection end: ASME B16.5, ASME B16.25, EN1092 series.
ASTM B148 C95800, ASTM B148 C95500
Application: electric power, petroleum refining, petrochemical engineering, offshore oil, chemical engineering
Operation: Hand wheel, gearbox, electric
