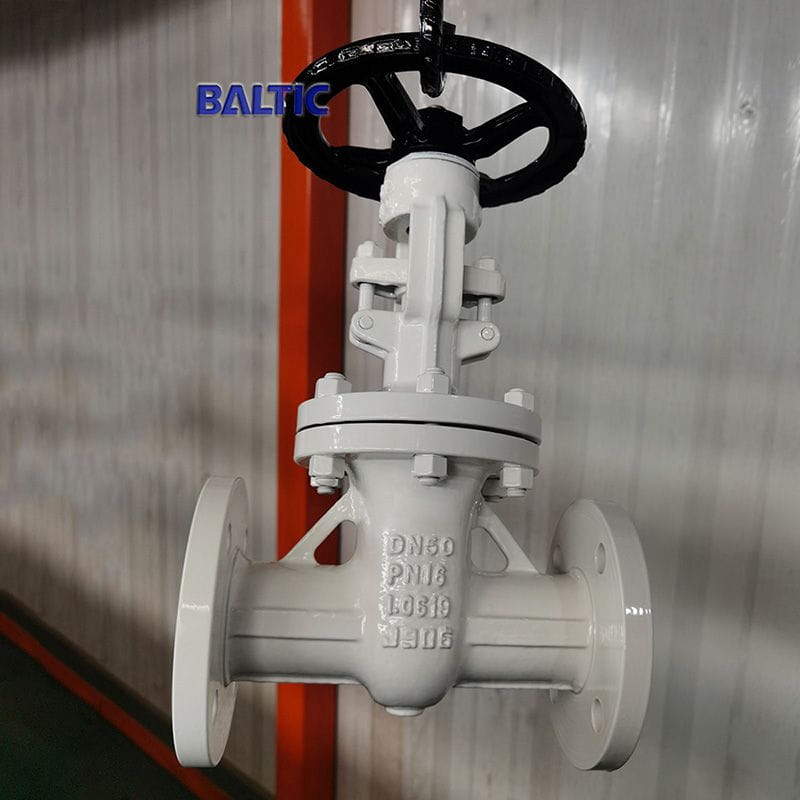

1.0619 Flexible Wedge Gate Valve, DN50, PN16, DIN 3352

1.0619 Flexible Wedge Gate Valve, DN50, PN16, DIN 3352

Key Specifications / Features

Model No.: Hits: 14

Discover our high-quality 1.0619 Wedge Gate Valve, manufactured to EN 1984 and DIN 3352 standards. This valve is DN50 (2 inches) in size, with a PN16 (Class 150 LB) rating. It comes equipped with a versatile operation mechanism, including a Handwheel, Gearbox, and Bare Stem. The valve features RF X RF Ends and has undergone rigorous testing to meet EN 12266-1 standards. Explore its reliable performance for your industrial needs.
Request a quote Share

Detail Information

Valve description:
Product Name: Flexible Wedge Gate Valve.
Design: EN 1984, DIN 3352
Material: 1.0619.
Nominal Size: DN50
Nominal Pressure: PN16.
Connection Ends: RF X RF, as per EN 1092-1/B1
Face to Face: EN 558-1/line 15
Model of Operation: Handwheel, Gearbox, bare stem
Test and Inspection: EN 12266-1.

Technical Parameters and Characteristics
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Design pressure: class 150 - 2500 LB, PN10 - PN420.
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design temp.: -196℃ - 573℃.
Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9,
ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC
ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C
CN3MN, CK3MCUN, CN7M, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN),
ASTM A890 6A (CD3MWCuN), ASTM B148 C95800, ASTM B148 C95500
Connection end: ASME B16.5, ASME B16.25, EN 1092 series.
Operation: Hand wheel, gearbox, electric
Application: electric power, petroleum refining, petrochemical engineering, offshore oil, chemical engineering
